TIC206M - Triacs

Datasheet Summary

Features

  • With TO-220 package.
  • Sensitive Gate Triacs.
  • Glass Passivated.
  • Max IGT of 5 mA (Quadrants 1~3).
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

Datasheet preview – TIC206M

Datasheet Details

Part number TIC206M
Manufacturer Inchange Semiconductor
File Size 162.38 KB
Description Triacs
Datasheet download datasheet TIC206M Datasheet
Additional preview pages of the TIC206M datasheet.

📁 Similar Datasheet

  • TIC206M - (TIC206x) SILICON BIDIRECTIONAL TRIODE THYRISTOR (Comset Semiconductors)
  • TIC206 - SILICON TRIACS (Power Innovations Limited)
  • TIC206A - (TIC206x) SILICON BIDIRECTIONAL TRIODE THYRISTOR (Comset Semiconductors)
  • TIC206B - (TIC206x) SILICON BIDIRECTIONAL TRIODE THYRISTOR (Comset Semiconductors)
  • TIC206D - (TIC206x) SILICON BIDIRECTIONAL TRIODE THYRISTOR (Comset Semiconductors)
  • TIC206N - (TIC206x) SILICON BIDIRECTIONAL TRIODE THYRISTOR (Comset Semiconductors)
  • TIC206S - (TIC206x) SILICON BIDIRECTIONAL TRIODE THYRISTOR (Comset Semiconductors)
  • TIC201 - SILICON TRIACS (Power Innovations Limited)
  • TIC216 - SILICON TRIACS (Power Innovations Limited)
  • TIC216 - Triac (INCHANGE)
Other Datasheets by Inchange Semiconductor

Full PDF Text Transcription

Click to expand full text

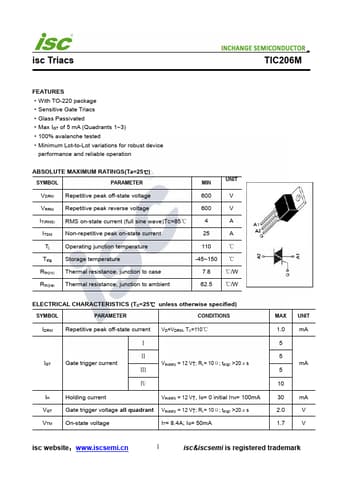

isc Triacs TIC206M FEATURES ·With TO-220 package ·Sensitive Gate Triacs ·Glass Passivated ·Max IGT of 5 mA (Quadrants 1~3) ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER MIN UNIT VDRM Repetitive peak off-state voltage 600 V VRRM Repetitive peak reverse voltage 600 V IT(RMS) RMS on-state current (full sine wave)TC=85℃ 4 A ITSM Non-repetitive peak on-state current 25 A Tj Operating junction temperature 110 ℃ Tstg Storage temperature -45~150 ℃ Rth(j-c) Thermal resistance, junction to case 7.8 ℃/W Rth(j-a) Thermal resistance, junction to ambient 62.
