TIC206S - (TIC206x) SILICON BIDIRECTIONAL TRIODE THYRISTOR

This page provides the datasheet information for the TIC206S, a member of the TIC206A (TIC206x) SILICON BIDIRECTIONAL TRIODE THYRISTOR family.

Datasheet Summary

Description

This device is a bidirectional triode thyristor (triac) which may be triggered from the off-state to the on-state by either polarity of gate signal with main Terminal 2 at either polarity.

📥 Download Datasheet

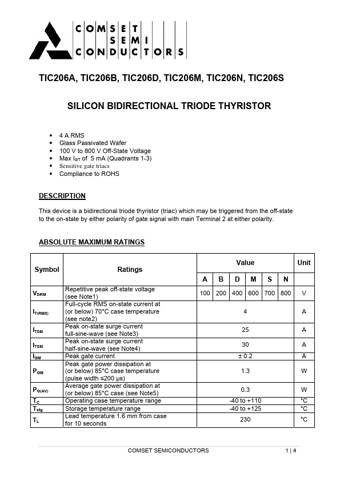

Datasheet preview – TIC206S

Datasheet Details

Part number TIC206S
Manufacturer Comset Semiconductors
File Size 215.12 KB
Description (TIC206x) SILICON BIDIRECTIONAL TRIODE THYRISTOR
Datasheet download datasheet TIC206S Datasheet
Additional preview pages of the TIC206S datasheet.
