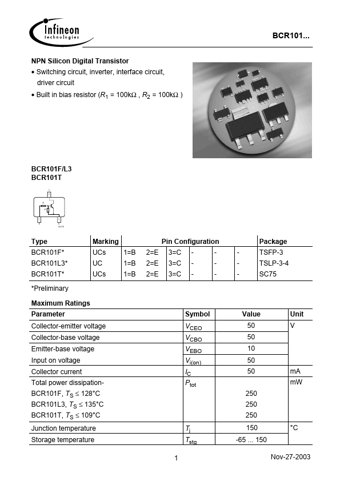

BCR101...
NPN Silicon Digital Transistor • Switching circuit, inverter, interface circuit, driver circuit • Built in bias resistor (R1 = 100kΩ , R2 = 100kΩ )
BCR101F/L3 BCR101T
C 3
R1 R2
1 B
2 E
EHA07184
Type
Marking
Pin Configuration
Package
BCR101F* BCR101L3* BCR101T* *Preliminary
Maximum Ratings Parameter
UCs UC UCs
1=B 1=B 1=B
2=E 2=E 2=E
3=C 3=C 3=C
-
-
-
TSFP-3 TSLP-3-4 SC75
Symbol VCEO VCBO VEBO Vi(on) IC Ptot
Value 50 50 10 50 50 250 250 250
Unit V
Collector-emitter voltage Collector-base voltage Emitter-base voltage Input on voltage Collector current Total power dissipationBCR101F, TS ≤ 128°C BCR101L3, TS ≤ 135°C BCR101T, TS ≤ 109°C Junction temperature Storage temperature
1
mA mW
Tj Tstg
150 -65 ... 150
°C
Nov-27-2003
BCR101...
