BTS117 Datasheet, Switch, Infineon Technologies AG

BTS117 Features

• Switch
• Logic Level Input
• Input Protection (ESD)
• =Thermal shutdown with latch
• Overload protection
• Short circuit protection
• Overvoltage

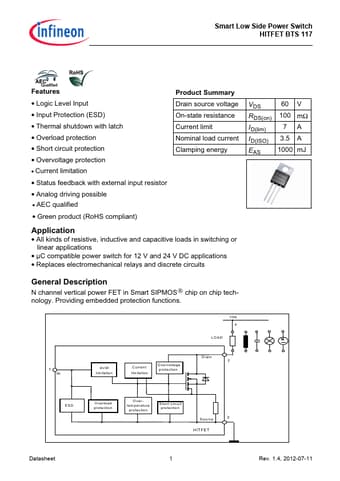

PDF File Details

Part number:

BTS117

Manufacturer:

Infineon ↗ Technologies AG

File Size:

209.28kb

Download:

📄 Datasheet

Description:

Smart low side power switch. N channel vertical power FET in Smart SIPMOS® chip on chip technology. Providing embedded protection functions. Vbb + LOAD M 1 IN

BTS117 Application

• Applications
• μC compatible power switch for 12 V and 24 V DC applications
• Replaces electromechanical relays and discrete circuit
