BTS112A - TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic)

Product Overview

Siemens Semiconductor Group

Part number	BTS112A
Manufacturer	Siemens Semiconductor Group
File Size	319.79 KB
Description	TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic)
Datasheet	BTS112A Datasheet
Additional preview pages of the BTS112A datasheet.

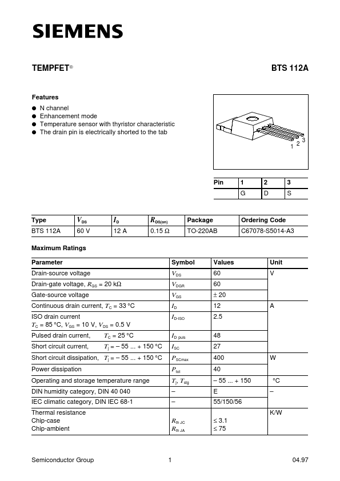

q q q q N channel Enhancement mode Temperature sensor with thyristor characteristic The drain pin is electricalIy shorted to the tab 1 2 3 Pin 1 G 2 D 3 S Type BTS 112A VDS 60 V ID 12 A RDS(on) 0.15 Ω Package TO-220AB Ordering Code C67078-S5014-A3 Maximum Ratings Parameter Drain-source voltage Drain-gate voltage, RGS = 20 kΩ Gate-source voltage Continuous drain current, TC = 33 °C ISO drain current TC = 85 °C, VGS = 10 V, VDS = 0.5 V Pulsed drain current, Short circuit current, Symbo.
