BTS117 Smart Lowside Power Switch (Logic Level Input Input Protection ESD Thermal Shutdown Overload protection)

N channel vertical power FET in Smart SIPMOS ® chip on chip technology. Fully protected by embedded protected functions. V bb + LOAD M Drain 2 dv/dt limitation Current lim itation Overvoltage protection 1 IN ESD Overload protection Overtemperature protection Short circuit circuit Short prote.

BTS117 Features

* Logic Level Input

* Input Protection (ESD)

* Thermal Shutdown

* Overload protection

* Short circuit protection

* Overvoltage protection

* Current limitation

* Status feedback with external input resistor

* Analog driving possi

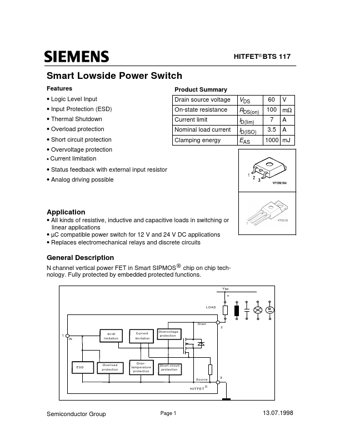

BTS117_SiemensSemiconductorGroup.pdf
