BTS120 - MOSFET

Product Overview

Infineon Technologies AG

Part number	BTS120
Manufacturer	Infineon Technologies AG
File Size	445.86 KB
Description	MOSFET
Datasheet	BTS120 Datasheet
Additional preview pages of the BTS120 datasheet.

and charts stated herein.

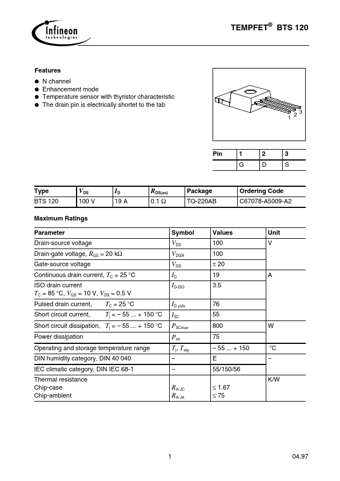

q q q q N channel Enhancement mode Temperature sensor with thyristor characteristic The drain pin is electrically shortet to the tab 1 2 3 Pin 1 G 2 D 3 S Type BTS 120 VDS 100 V ID 19 A RDS(on) 0.1 Ω Package TO-220AB Ordering Code C67078-A5009-A2 Maximum Ratings Parameter Drain-source voltage Drain-gate voltage, RGS = 20 kΩ Gate-source voltage Continuous drain current, TC = 25 °C ISO drain current TC = 85 °C, VGS = 10 V, VDS = 0.5 V Pulsed drain current, Short circuit current, Symbol.
