MMBT3906 Datasheet - Infineon Technologies AG

MMBT3906 PNP Silicon Switching Transistor

PNP Silicon Switching Transistors High DC current gain: 0.1 mA to 100 mA Low collector-emitter saturation voltage For SMBT3906S and SMBT3906U: Two (galvanic) internal isolated transistor with good matching in one package Complementary types: SMBT3904MMBT3904 (NPN) SMBT3906S/ U: for orientation in reel see package information below Pb-free (RoHS compliant) package Qualified according AEC Q101 SMBT3906MMBT3906 Type SMBT3906/ M.

MMBT3906_InfineonTechnologiesAG.pdf

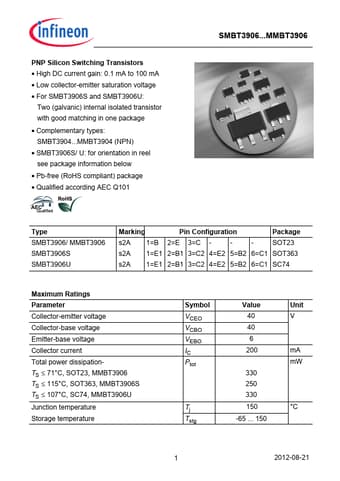

Preview of MMBT3906 PDF
MMBT3906 Datasheet Preview Page 2 MMBT3906 Datasheet Preview Page 3

Datasheet Details

Part number:

MMBT3906

Manufacturer:

Infineon ↗ Technologies AG

File Size:

881.82 KB

Description:

Pnp silicon switching transistor.
