H30R100 Datasheet, Igbt, Infineon Technologies

H30R100 Features

  • Igbt
  • 1.5V Forward voltage of monolithic body Diode
  • Full Current Rating of monolithic body Diode
  • Specified for TJmax = 175°C
  • Trench and Fieldstop tech

PDF File Details

Part number:

H30R100

Manufacturer:

Infineon ↗ Technologies

File Size:

320.25kb

Download:

📄 Datasheet

Description:

Reverse conducting igbt.

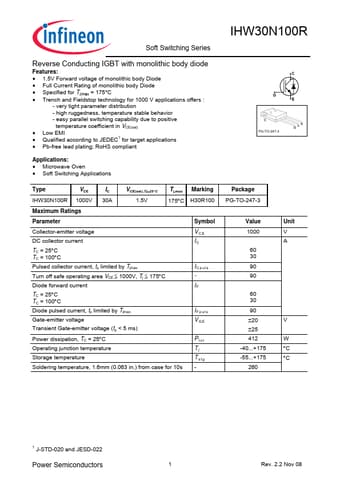

Datasheet Preview: H30R100 📥 Download PDF (320.25kb)
Page 2 of H30R100 Page 3 of H30R100

H30R100 Application

  • Applications offers : - very tight parameter distribution - high ruggedness, temperature stable behavior - easy parallel switching capability due to

TAGS

H30R100
Reverse
Conducting
IGBT
Infineon Technologies
