ICE2QR4765 Datasheet - Infineon Technologies

ICE2QR4765 - Off-Line SMPS Quasi-Resonant PWM Controller

The CoolSET®-Q1 series (ICE2QRxx65) is the first generation of quasi-resonant integarted power ICs.

It is optimized for off-line switch mode power supply applications such as LCD monitor, DVD R/W, DVD Combo, Blue-ray DVD, set top box, etc.

Operting the MOSFET switch in quasi-resonant mode, lower EMI

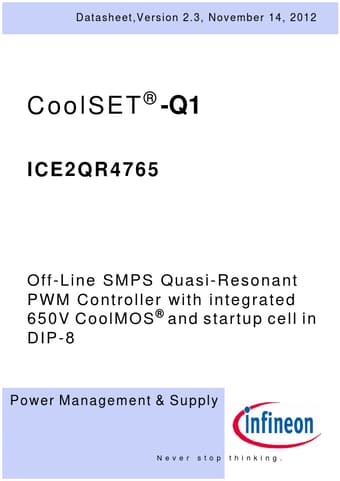

Datasheet,Version 2.3, November 14, 2012 C o o l S E T -Q1 ICE2QR4765 ® Off-Line SMPS Quasi-Resonant PWM Controller with integrated 650V CoolMOS® and startup cell in DIP-8 Power Management & Supply N e v e r s t o p t h i n k i n g .

CoolSET® -Q1 ICE2QR4765 Revision History: Previous Version: Page 20 21 November 14, 2012 2.2 Subjects (major changes since last revision) Revised outline dimension.

Add marking Datasheet For questions on technology, delivery and prices please contact the

ICE2QR4765 Features

* 650V avalanche rugged CoolMOS® with built-in startup cell Quasiresonant operation till very low load Active burst mode operation for low standby input power (< 0.1W) Digital frequency reduction with decreasing load for reduced switching loss Built-in digital soft-start Foldback point correction and
