IPA60R250CP Power Transistor

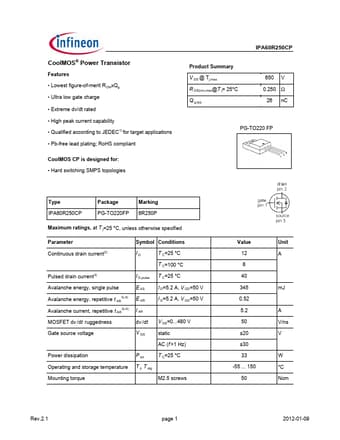

📥 Download Datasheet Datasheet Preview Page 1

Description

CoolMOS® Power Transistor .

📥 Download Datasheet

Preview of IPA60R250CP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Lowest figure-of-merit RONxQg
* Ultra low gate charge
* Extreme dv/dt rated
* High peak current capability

Applications

* Pb-free lead plating; RoHS compliant CoolMOS CP is designed for:
* Hard switching SMPS topologies Product Summary V DS @ Tj,max R DS(on),max@T j= 25°C Q g,typ 6.6 IPA60R250CP 650 V 0.250 Ω 26 nC PG-TO220 FP Type IPA60R250CP Package PG-TO220FP Marking 66RR225909PP Maximum
