IPP80N06S2L-09 - Power-Transistor

Infineon Technologies

📥 Download Datasheet

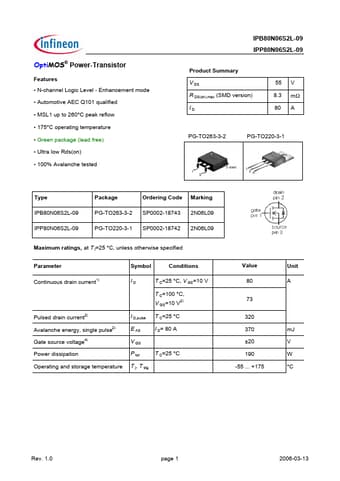

IPP80N06S2L-09 Datasheet Preview — Preview of IPP80N06S2L-09 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IPP80N06S2L-09
Manufacturer: Infineon ↗ Technologies
File Size: 152.40 KB
Datasheet: IPP80N06S2L-09-InfineonTechnologies.pdf
Description: Power-Transistor

IPP80N06S2L-09 Product details

Description

and charts stated herein..

Features

N-channel Logic Level - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free).
Ultra low Rds(on).
100% Avalanche tested IPB80N06S2L-09 IPP80N06S2L-09 Product Summary V DS R DS(on),max (SMD version) ID 55 V 8.3 mΩ 80 A PG-TO263-3-2 PG-TO220-3-1 Type IPB80N06S2L-09 IPP80N06S2L-09 Package Ordering Code Marking PG-TO263-3-2 SP0002-18743 2N06L09 PG-.
