IRMS6115 - (IRMS6115 / IRMT6115) Infrared Data Transceiver

Infineon Technologies

📥 Download Datasheet

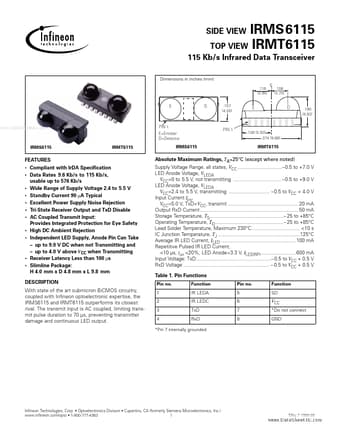

IRMS6115 Datasheet Preview — Preview of IRMS6115 PDF

Datasheet Details

Part number: IRMS6115
Manufacturer: Infineon ↗ Technologies
File Size: 192.50 KB
Datasheet: IRMS6115_InfineonTechnologies.pdf
Description: (IRMS6115 / IRMT6115) Infrared Data Transceiver

IRMS6115 Product details

Description

With state of the art submicron BiCMOS circuitry, coupled with Inﬁneon optoelectronic expertise, the IRMS6115 and IRMT6115 outperforms its closest rival. 0.5 to +7.0 V LED Anode Voltage, VLEDA VCC=0 to 5.5 V, not transmitting 0.5 to +9.0 V LED Anode Volt

Features

Compliant with IrDA Speciﬁcation.
Data Rates 9.6 Kb/s to 115 Kb/s, usable up to 576 Kb/s.
Wide Range of Supply Voltage 2.4 to 5.5 V.
Standby Current 90 µA Typical.
Excellent Power Supply Noise Rejection.
Tri-State Receiver Output and TxD Disable.
AC Coupled Transmit Input: Provides Integrated Protection for Eye Safety.
High DC Ambient Rejection.
Independent LED Supply, Anode Pin Can Take.
up to 9.0 V DC wh.
