IRMS6118 - (IRMS6118 / IRMT6118) Infrared Data Transceiver

Infineon Technologies

📥 Download Datasheet

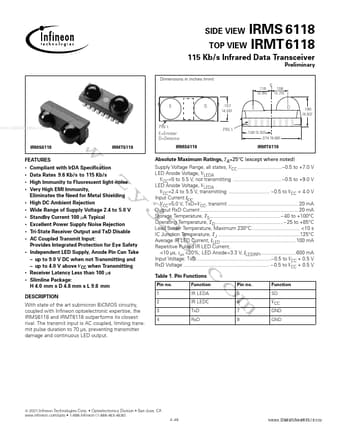

IRMS6118 Datasheet Preview — Preview of IRMS6118 PDF

Datasheet Details

Part number: IRMS6118
Manufacturer: Infineon ↗ Technologies
File Size: 483.62 KB
Datasheet: IRMS6118_InfineonTechnologies.pdf
Description: (IRMS6118 / IRMT6118) Infrared Data Transceiver

IRMS6118 Product details

Description

With state of the art submicron BiCMOS circuitry, coupled with Inﬁneon optoelectronic expertise, the IRMS6118 and IRMT6118 outperforms its closest rival. Optoelectronics Division San Jose, CA www.inﬁneon.com/opto 1-888-Inﬁneon (1-888-463-4636) 4 48 March 21, 2001-19 Figure 1. Block Diagram D

Features

Compliant with IrDA Speciﬁcation Data Rates 9.6 Kb/s to 115 Kb/s High Immunity to Fluorescent light-noise Very High EMI Immunity, Eliminates the Need for Metal Shielding High DC Ambient Rejection Wide Range of Supply Voltage 2.4 to 5.0 V Standby Current 100 µA Typical Excellent Power Supply Noise Rejection Tri-State Receiver Output and TxD Disable AC Coupled Transmit Input: Provides Inte.
