The TDA5100 is a single chip ASK/FSK Package transmitter for the frequency bands 868-870 MHz and 433-435 MHz.

The IC offers a high level of integration and needs only a few external components.

The device contains a fully integrated PLL synthesizer and a high efficiency power amplifier to drive a lo

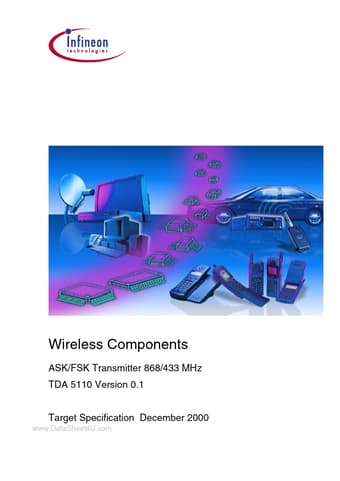

www.DataSheet4U.com Wireless Components ASK/FSK Transmitter 868/433 MHz TDA 5110 Version 0.1 Target Specification December 2000 www.DataSheet4U.com www.DataSheet4U.com Revision History Current Version: 1.0 as of 20.12.2000 ABM®, AOP®, ARCOFI®, ARCOFI®-BA, ARCOFI®-SP, DigiTape®, EPIC®-1, EPIC®-S, ELIC®, FALC®54, FALC®56, FALC®-E1, FALC®-LH, IDEC®, IOM®, IOM®-1, IOM®-2, IPAT®-2, ISAC®-P, ISAC®-S, ISAC®-S TE, ISAC®-P TE, ITAC®, IWE®, MUSAC®-A, OCTAT®-P, QUAT®-S, SICAT®, SICOFI®, SICOFI®2, SICO

TDA5110 Features

* like a power down mode, a low power detect, a selectable crystal oscillator frequency and a divided clock output are implemented. The IC can be used for both ASK and FSK modulation. Features  fully integrated frequency synthesizer  voltage supply range 2.1 - 4 V  power down mode  low voltage
