TLE8386-2EL Basic Smart Boost Controller

TLE8386-2EL Description

OPTIREG™ switcher TLE8386-2EL Basic smart boost controller .
The TLE8386-2EL is a boost controller with built in protection features.

TLE8386-2EL Features

* Wide input voltage range from 4.75 V to 45 V
* Constant current regulation
* Constant voltage regulation
* Very low shutdown current: Iq < 2 µA
* Flexible switching frequency range, 100 kHz to 700 kHz
* Synchronization with external clock source

TLE8386-2EL Applications

* Step up converter
* Voltage stabilization during cold cranking
* SEPIC

📥 Download Datasheet

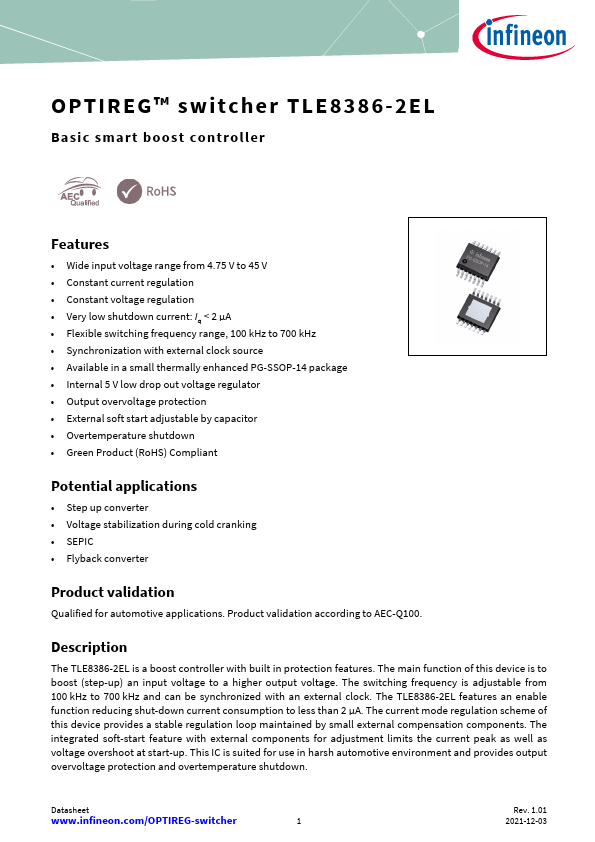

Preview of TLE8386-2EL PDF

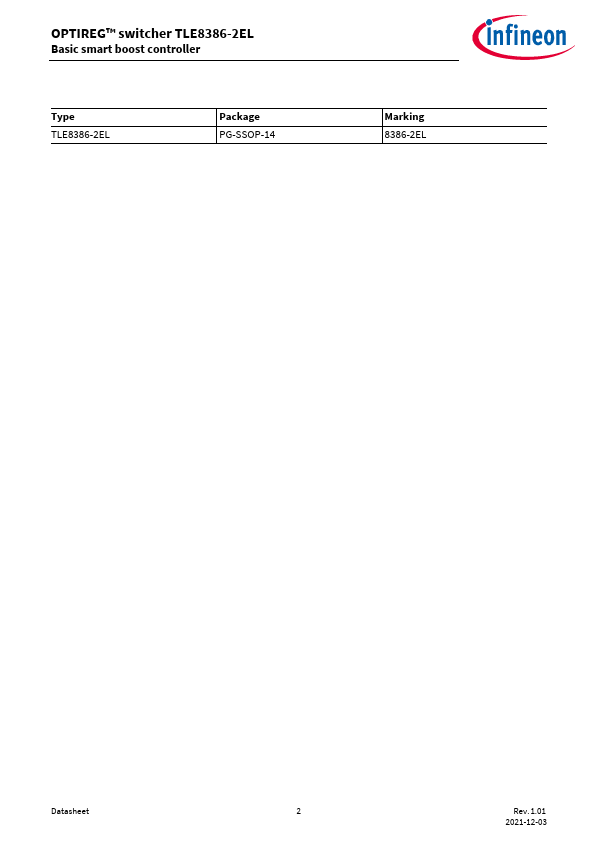

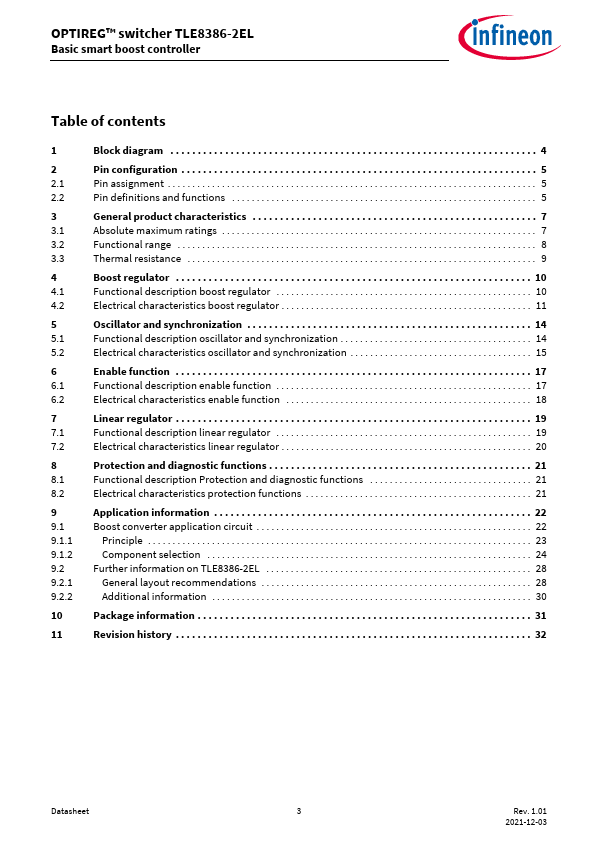

datasheet Preview Page 2 datasheet Preview Page 3
