TLS203B0EJV50

Linear Voltage Post Regulator

TLS203B0EJV50 Features

* Low Noise down to 42 µVRMS (BW = 10 Hz to 100 kHz)

* 300 mA Current Capability

* Low Quiescent Current: 30 µA

* Wide Input Voltage Range up to 20 V

* Internal circuitry working down to 2.3 V

* 2.5% Output Voltage Accuracy (over full temperature and l

TLS203B0EJV50 General Description

The electrical characteristics are specified within the conditions given in the Electrical Characteristics table. 4.3 Thermal Resistance Note: This thermal data was generated in accordance with JEDEC JESD51 standards. For more information, go to www.jedec.org. Table 3 Thermal Resistance 1) Para.

TLS203B0EJV50 Datasheet (1.93 MB)

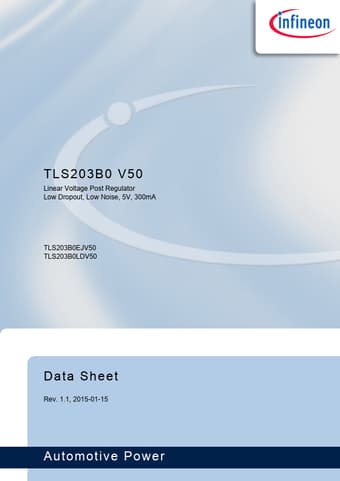

Preview of TLS203B0EJV50 PDF

Datasheet Details

Part number:

TLS203B0EJV50

Manufacturer:

Infineon ↗ Technologies

File Size:

1.93 MB

Description:

Linear voltage post regulator.
TLS203B0 V50 Linear Voltage Post Regulator Low Dropout, Low Noise, 5V, 300mA TLS203B0EJV50 TLS203B0LDV50 Data Sheet Rev. 1.1, 2015-01-15 Automotive Po.
