TLS202B1V50 - Fixed Linear Voltage Post Regulator

Product Overview

Infineon

Datasheet Details

Part number	TLS202B1V50
Manufacturer	Infineon
File Size	309.16 KB
Description	Fixed Linear Voltage Post Regulator
Datasheet	TLS202B1V50 Datasheet

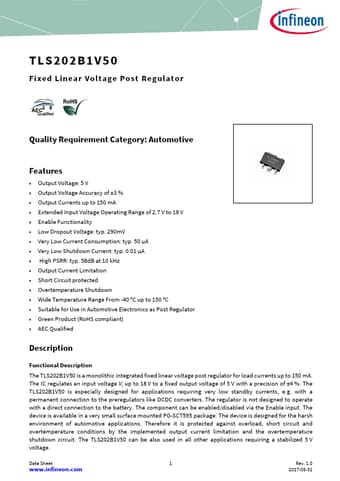

Additional preview pages of the TLS202B1V50 datasheet.

Product details

Description

Functional Description The TLS202B1V50 is a monolithic integrated fixed linear voltage post regulator for load currents up to 150 mA.The IC regulates an input voltage VI up to 18 V to a fixed output voltage of 5 V with a precision of ±4 %.The TLS202B1V50 is especially designed for a

Features

Output Voltage: 5 V.
Output Voltage Accuracy of ±3 %.
Output Currents up to 150 mA.
Extended Input Voltage Operating Range of 2.7 V to 18 V.
Enable Functionality.
Low Dropout Voltage: typ. 290mV.
Very Low Current Consumption: typ. 50 µA.
Very Low Shutdown Current: typ. 0.01 µA.
High PSRR: typ. 58dB at 10 kHz.
Output Current Limitation.
Short Circuit protected.
Overtemperature Shutdown.
