1ED3323MC12N, 1ED3320MC12N Datasheet - Infineon

1ED3323MC12N, 1ED3320MC12N, Single-channel 5.7 kV (rms) isolated gate driver

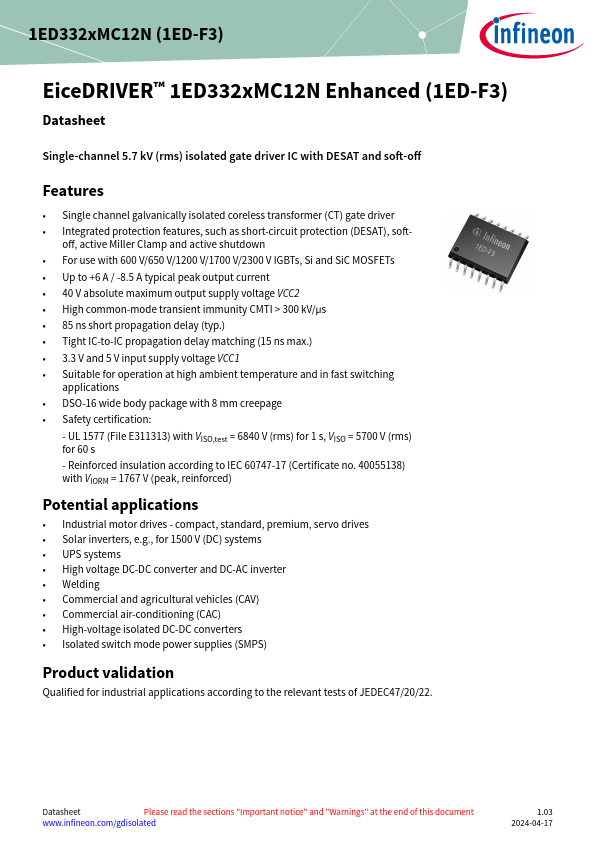

1ED332xMC12N (1ED-F3) EiceDRIVER™ 1ED332xMC12N Enhanced (1ED-F3) Datasheet Single-channel 5.7 kV (rms) isolated gate driver IC with DESAT and soft-off

Features

* Single channel galvanically isolated coreless transformer (CT) gate driver
* Integrated protection features, such as short-circuit protection (DESAT), soft- off, active Miller Clamp and active shutdown
* For use with 600 V/650 V/1200 V/1700 V/2300 V IGBTs, Si and SiC MOSFET

Applications

* DSO-16 wide body package with 8 mm creepage
* Safety certification: - UL 1577 (File E311313) with VISO,test = 6840 V (rms) for 1 s, VISO = 5700 V (rms) for 60 s - Reinforced insulation according to IEC 60747-17 (Certificate no. 40055138) with VIORM = 1767 V (peak, reinforced) Poten
