1EDC60I12AH, 1EDC05I12AH Datasheet - Infineon

1EDC60I12AH, 1EDC05I12AH, Single channel IGBT gate driver

1EDCxxI12AH and 1EDCxxH12AH EiceDRIVER™ 1EDC Compact Single channel IGBT gate driver IC in wide body package .
Description The 1EDCxxI12AH and 1EDCxxH12AH are galvanically isolated single channel IGBT driver in a PG-DSO-8-59 package that provide output currents.

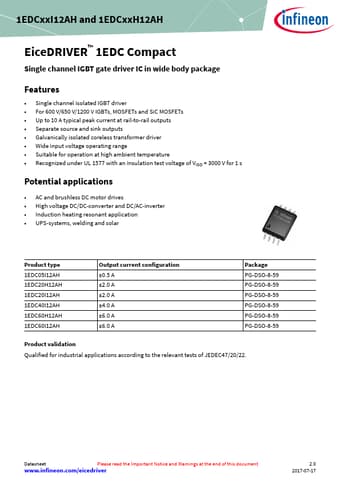

datasheet Preview Page 1 from Datasheet4u.com

1EDC05I12AH-Infineon.pdf

1EDC60I12AH Datasheet Preview — This datasheet PDF includes multiple part numbers: 1EDC60I12AH, 1EDC05I12AH. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1EDC60I12AH, 1EDC05I12AH

Manufacturer:

Infineon ↗

File Size:

502.79 KB

Description:

Single channel IGBT gate driver

Note:

This datasheet PDF includes multiple part numbers: 1EDC60I12AH, 1EDC05I12AH.
Please refer to the document for exact specifications by model.

Features

* Single channel isolated IGBT driver
* For 600 V/650 V/1200 V IGBTs, MOSFETs and SiC MOSFETs
* Up to 10 A typical peak current at rail-to-rail outputs
* Separate source and sink outputs
* Galvanically isolated coreless transformer driver
* Wide input

Applications

* AC and brushless DC motor drives
* High voltage DC/DC-converter and DC/AC-inverter
* Induction heating resonant application
* UPS-systems, welding and solar Product type 1EDC05I12AH 1EDC20H12AH 1EDC20I12AH 1EDC40I12AH 1EDC60H12AH 1EDC60I12AH Output current configu
