2EDN7524F Datasheet - Infineon

2EDN7524F, advanced dual-channel driver

EiceDRIVER™ 2EDN752x/2EDN852x .
The 2EDN752x/2EDN852x is an advanced dual-channel driver.

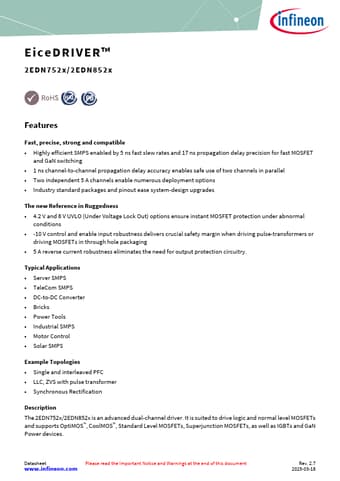

datasheet Preview Page 1 from Datasheet4u.com

2EDN7524F-Infineon.pdf

2EDN7524F Datasheet Preview — Preview of 2EDN7524F PDF

Datasheet Details

Part number:

2EDN7524F

Manufacturer:

Infineon ↗

File Size:

1.06 MB

Description:

advanced dual-channel driver

Features

* Fast, precise, strong and compatible
* Highly efficient SMPS enabled by 5 ns fast slew rates and 17 ns propagation delay precision for fast MOSFET and GaN switching
* 1 ns channel-to-channel propagation delay accuracy enables safe use of two channels in parallel
* Two indepen

Applications

* Server SMPS
* TeleCom SMPS
* DC-to-DC Converter
* Bricks
* Power Tools
* Industrial SMPS
* Motor Control
* Solar SMPS Example Topologies
* Single and interleaved PFC
* LLC, ZVS with pulse transformer
* Synchron
