2EDN7534B

Dual-channel low-side 5A gate driver

2EDN7534B Features

* Applications

* ±5 A source/sink currents

* Switch-mode power-supplies

* 19 ns typ. propagation delay

* DC-DC power converters

* +6/-4 ns propagation delay accuracy

* Synchronous rectification stages

* 1.8 µs output start-up time

2EDN7534B General Description

The EiceDRIVER™ 2EDN family is offered in 8-pin DSO, TSSOP and WSON packages as well as in small and versatile 6-pin SOT23 package. High output current capability together with active output voltage clamping, tight timing specifications, and optimized start-up and shut-down times, make the 2EDN fami.

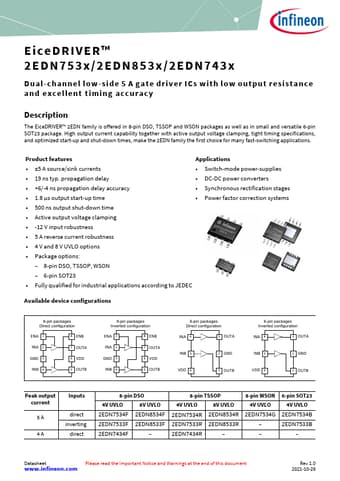

2EDN7534B Datasheet (1.32 MB)

Preview of 2EDN7534B PDF

Datasheet Details

Part number:

2EDN7534B

Manufacturer:

Infineon ↗

File Size:

1.32 MB

Description:

Dual-channel low-side 5a gate driver.
