BAR50-02L - Silicon PIN Diodes

BAR50-02L Description

Silicon PIN Diodes * Current-controlled RF resistor for switching and attenuating applications * Frequency range above 10 MHz up to 6 .

BAR50-02L Applications

* Frequency range above 10 MHz up to 6 GHz
* Especially useful as antenna switch in mobile communication
* Very low capacitance at zero volt reverse bias at freuencies above 1 GHz (typ. 0.15 pF)
* Low forward resistance
* Very low harmonic distortion

📥 Download Datasheet

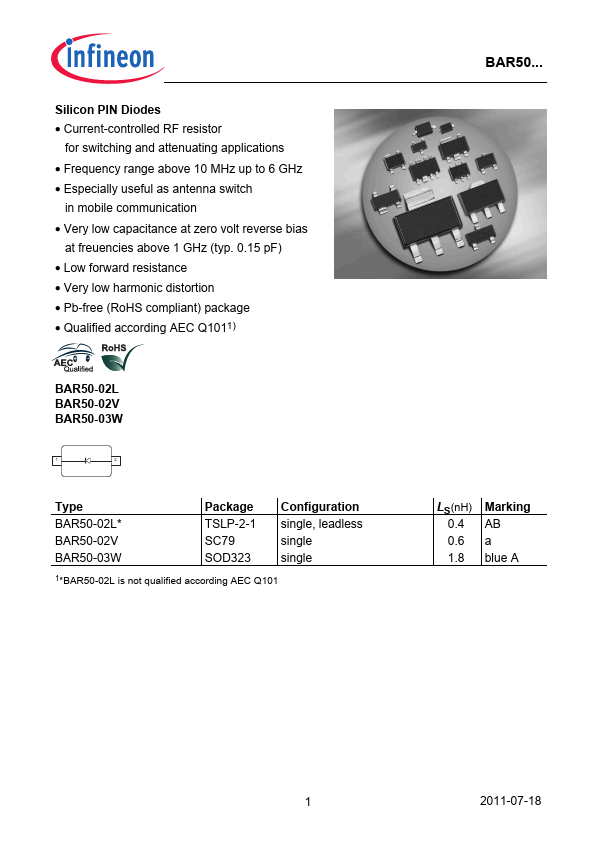

Preview of BAR50-02L PDF

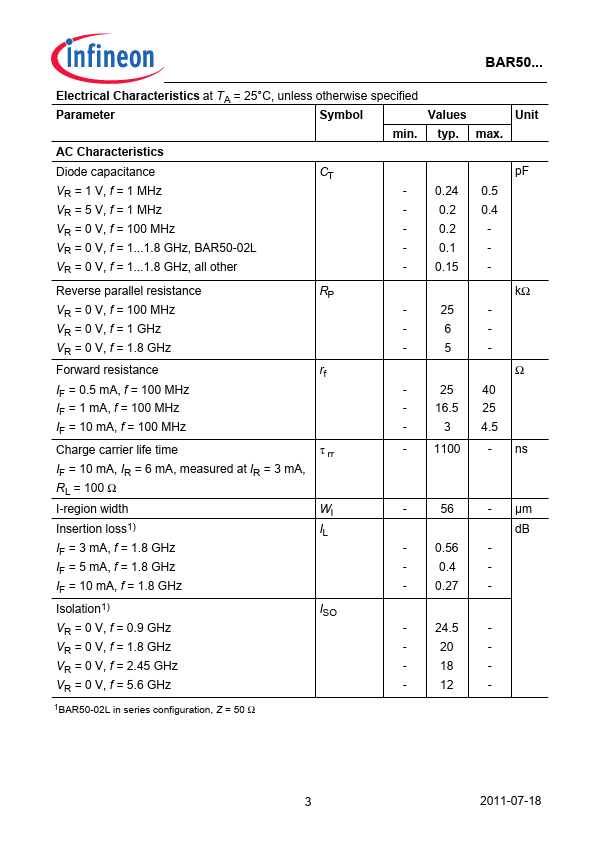

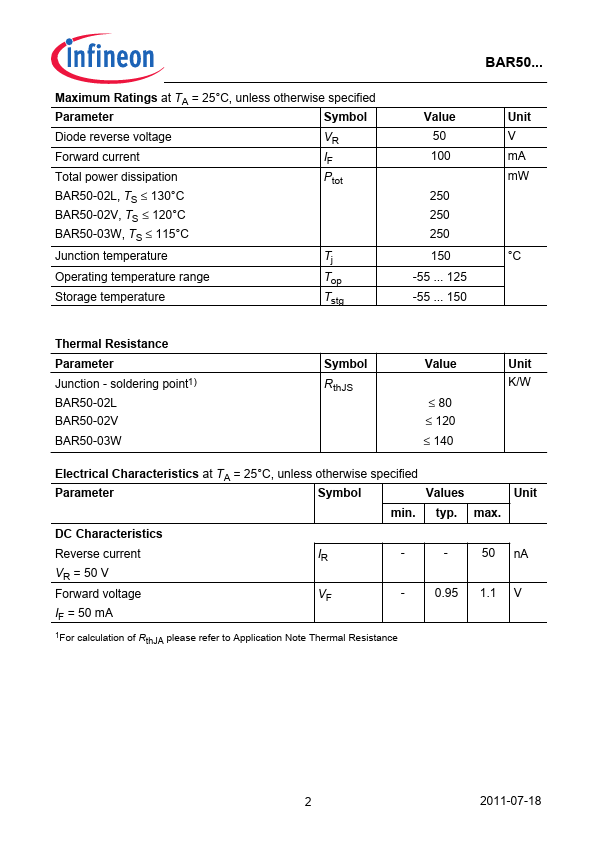

datasheet Preview Page 2 datasheet Preview Page 3
