BAR50-02V, BAR50-02L - Silicon PIN Diodes

BAR50-02V Description

Silicon PIN Diodes * Current-controlled RF resistor for switching and attenuating applications * Frequency range above 10 MHz up to 6 .

BAR50-02V Applications

* Frequency range above 10 MHz up to 6 GHz
* Especially useful as antenna switch in mobile communication
* Very low capacitance at zero volt reverse bias at freuencies above 1 GHz (typ. 0.15 pF)
* Low forward resistance
* Very low harmonic distortion

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAR50-02V, BAR50-02L. Please refer to the document for exact specifications by model.

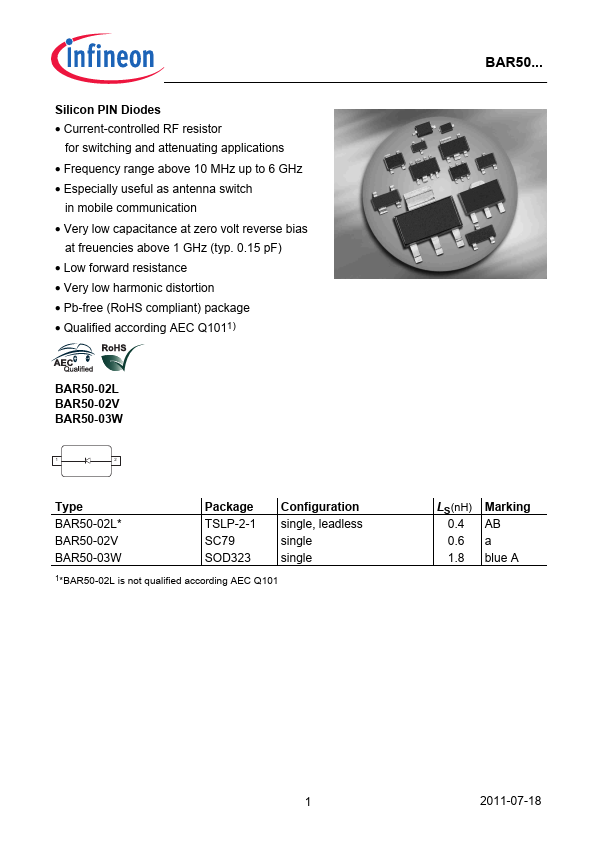

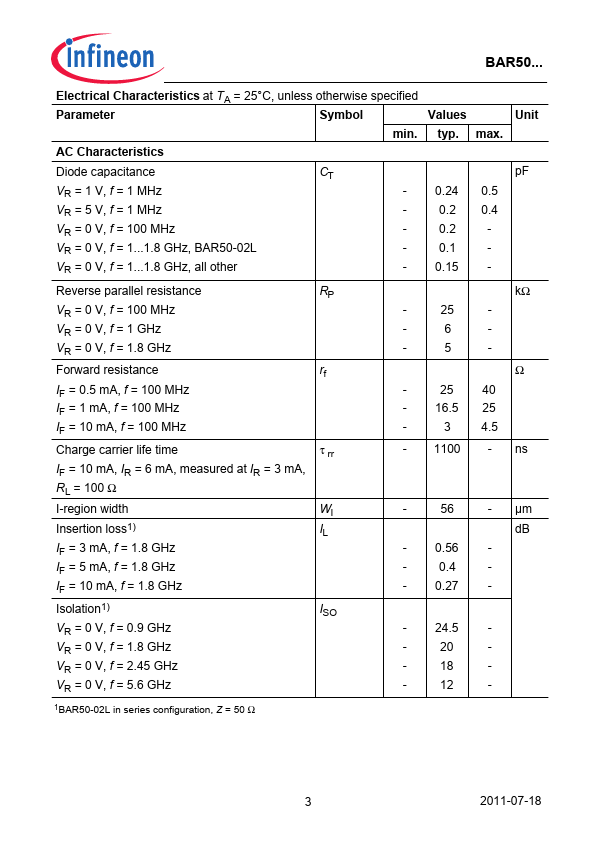

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAR50-02V, BAR50-02L
Manufacturer
Infineon ↗
File Size
0.95 MB
Datasheet
BAR50-02L-Infineon.pdf
Description
Silicon PIN Diodes
Note
This datasheet PDF includes multiple part numbers: BAR50-02V, BAR50-02L.
Please refer to the document for exact specifications by model.
