BCX55-16, BCX55 Datasheet - Infineon

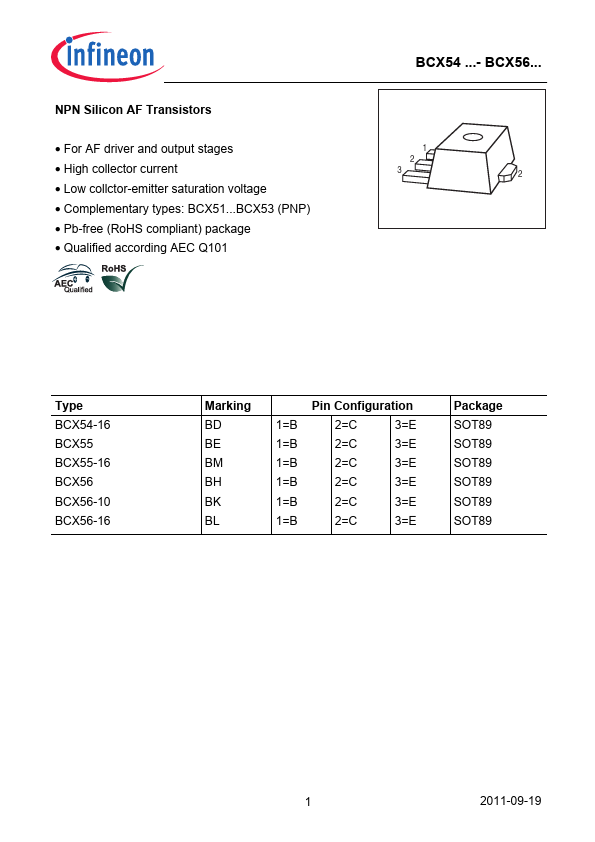

BCX55-16 NPN Silicon AF Transistors

NPN Silicon AF Transistors For AF driver and output stages High collector current Low collctor-emitter saturation voltage Complementary types: BCX51BCX53 (PNP) Pb-free (RoHS compliant) package Qualified according AEC Q101 BCX54 - BCX56 1 2 3 2 Type BCX54-16 BCX55 BCX55-16 BCX56 BCX56-10 BCX56-16 Marking BD BE BM BH BK BL Pin Configuration 1=B 2=C 3=E 1=B 2=C 3=E 1=B 2=C 3=E 1=B 2=C 3=E 1=B 2=C 3=E 1=B 2=C 3=E .

BCX55_InfineonTechnologiesAG.pdf

This datasheet PDF includes multiple part numbers: BCX55-16, BCX55. Please refer to the document for exact specifications by model.

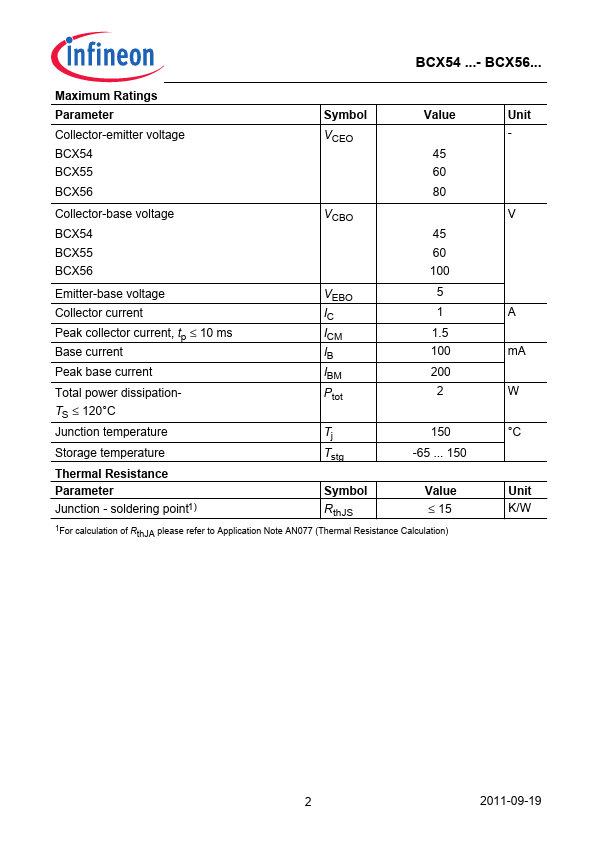

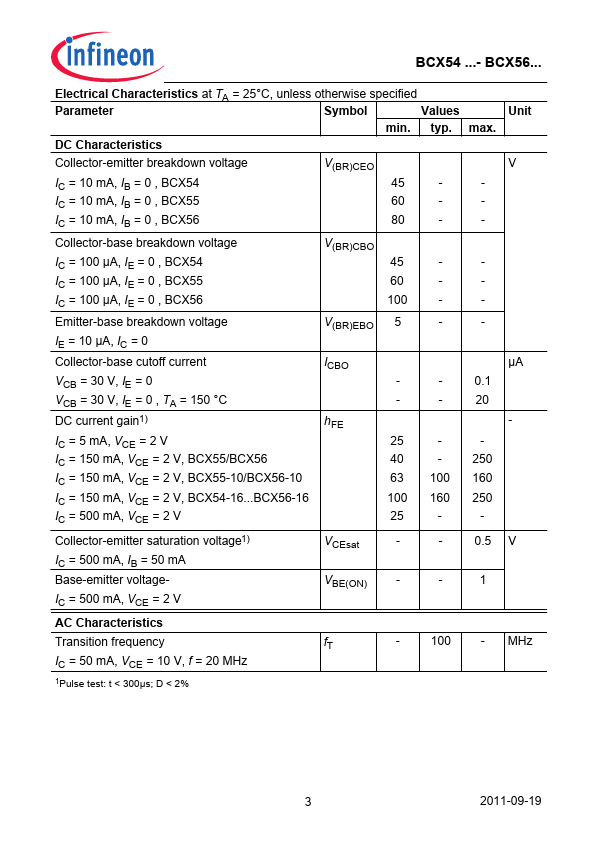

BCX55-16 Datasheet Preview Page 2 BCX55-16 Datasheet Preview Page 3

Datasheet Details

Part number:

BCX55-16, BCX55

Manufacturer:

Infineon ↗

File Size:

516.81 KB

Description:

Npn silicon af transistors.

Note:

This datasheet PDF includes multiple part numbers: BCX55-16, BCX55.
Please refer to the document for exact specifications by model.
