BCX54-16, BCX55 Datasheet - Infineon

BCX54-16 - NPN Silicon AF Transistors

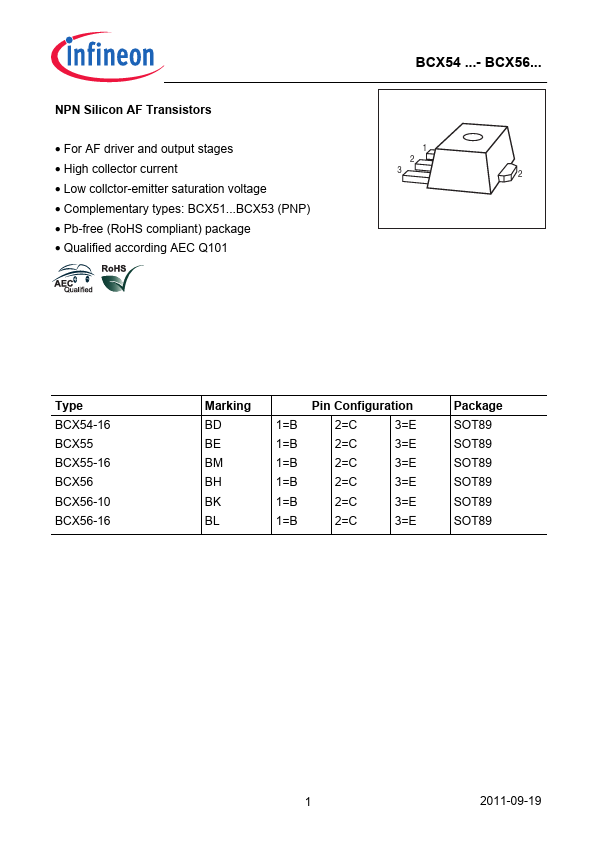

NPN Silicon AF Transistors For AF driver and output stages High collector current Low collctor-emitter saturation voltage Complementary types: BCX51BCX53 (PNP) Pb-free (RoHS compliant) package Qualified according AEC Q101 BCX54 - BCX56 1 2 3 2 Type BCX54-16 BCX55 BCX55-16 BCX56 BCX56-10 BCX56-16 Marking BD BE BM BH BK BL Pin Configuration 1=B 2=C 3=E 1=B 2=C 3=E 1=B 2=C 3=E 1=B 2=C 3=E 1=B 2=C 3=E 1=B 2=C 3=E .

BCX55_InfineonTechnologiesAG.pdf
