BCX54 - NPN medium power transistors

BCX54 Description

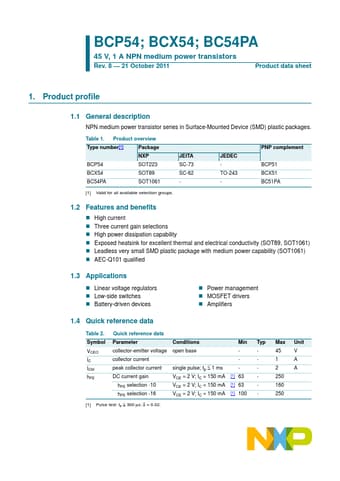

BCP54; BCX54; BC54PA 45 V, 1 A NPN medium power transistors Rev.8 * 21 October 2011 Product data sheet 1.Product profile 1.1 General des.
NPN medium power transistor series in Surface-Mounted Device (SMD) plastic packages.

BCX54 Features

* High current
* Three current gain selections
* High power dissipation capability
* Exposed heatsink for excellent thermal and electrical conductivity (SOT89, SOT1061)
* Leadless very small SMD plastic package with medium power capability (SOT1061)
* AEC-Q101 qualified 1.3

BCX54 Applications

* Linear voltage regulators
* Low-side switches
* Battery-driven devices
* Power management
* MOSFET drivers
* Amplifiers 1.4 Quick reference data Table 2. Quick reference data Symbol Parameter Conditions Min Typ Max Unit VCEO IC ICM hFE collector-emitter voltage coll
