BCX52, PNP medium power transistors

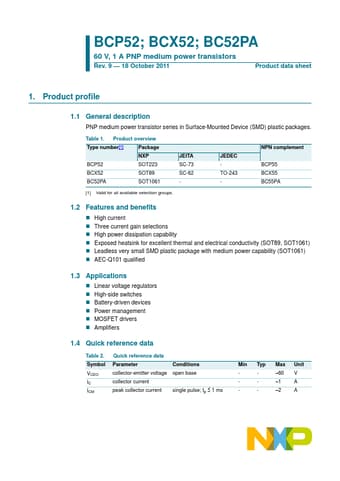

BCP52; BCX52; BC52PA 60 V, 1 A PNP medium power transistors Rev.9 * 18 October 2011 Product data sheet 1.Product profile 1.1 General des.
PNP medium power transistor series in Surface-Mounted Device (SMD) plastic packages.

datasheet Preview Page 1 from Datasheet4u.com

BCX52_PhilipsSemiconductors.pdf

BCX52 Datasheet Preview — Preview of BCX52 PDF

Datasheet Details

Part number:

BCX52

Manufacturer:

NXP ↗

File Size:

398.28 KB

Description:

PNP medium power transistors

Features

* High current
* Three current gain selections
* High power dissipation capability
* Exposed heatsink for excellent thermal and electrical conductivity (SOT89, SOT1061)
* Leadless very small SMD plastic package with medium power capability (SOT1061)
* AEC-Q101 qualified 1.3

Applications

* Linear voltage regulators
* High-side switches
* Battery-driven devices
* Power management
* MOSFET drivers
* Amplifiers 1.4 Quick reference data Table 2. Symbol VCEO IC ICM Quick reference data Parameter Conditions collector-emitter voltage open base collector curre
