BGS12WN6 - SPDT Switch

Infineon

📥 Download Datasheet

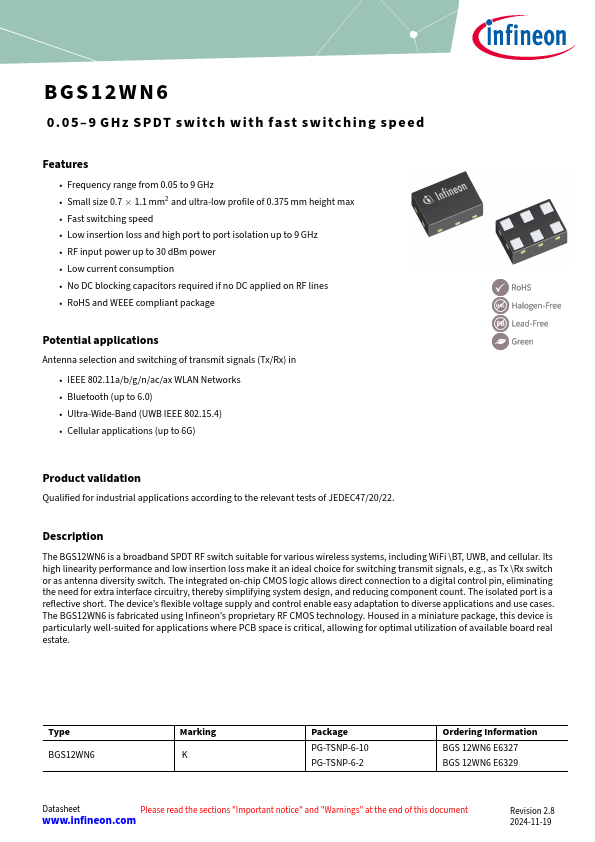

BGS12WN6 Datasheet Preview — Preview of BGS12WN6 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BGS12WN6
Manufacturer	Infineon ↗
File Size	1.31 MB
Description	SPDT Switch
Datasheet	BGS12WN6-Infineon.pdf

BGS12WN6 Product details

Description

The BGS12WN6 is a broadband SPDT RF switch suitable for various wireless systems, including WiFi BT, UWB, and cellular.

Features

Frequency range from 0.05 to 9 GHz.
Small size 0.7 × 1.1 mm2 and ultra-low profile of 0.375 mm height max.
Fast switching speed.
Low insertion loss and high port to port isolation up to 9 GHz.
RF input power up to 30 dBm power.
Low current consumption.
No DC blocking capacitors required if no DC applied on RF lines.
RoHS and WEEE compliant package Potential.
