BGT24AT2 - Silicon Germanium 24 GHz Transmitter MMIC

Product Overview

Infineon

📥 Download Datasheet

BGT24AT2 Silicon Germanium 24 GHz Transmitter MMIC by Infineon - Datasheet Preview — Datasheet preview – BGT24AT2

Datasheet Details

Part number	BGT24AT2
Manufacturer	Infineon
File Size	820.86 KB
Description	Silicon Germanium 24 GHz Transmitter MMIC
Datasheet	BGT24AT2 Datasheet

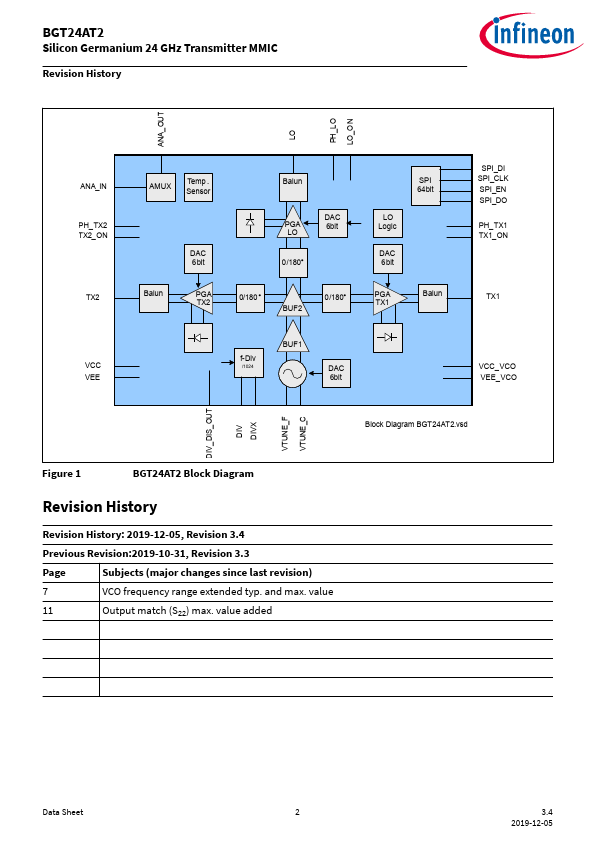

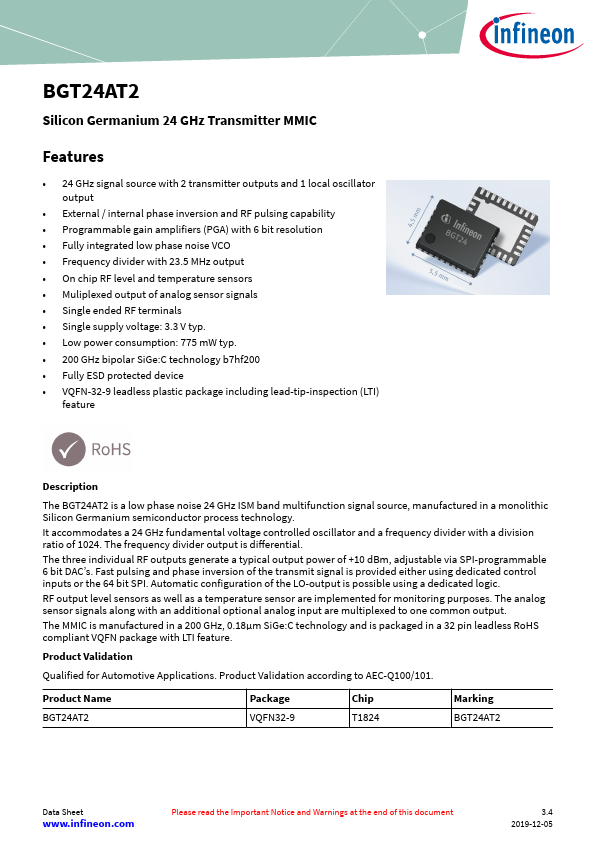

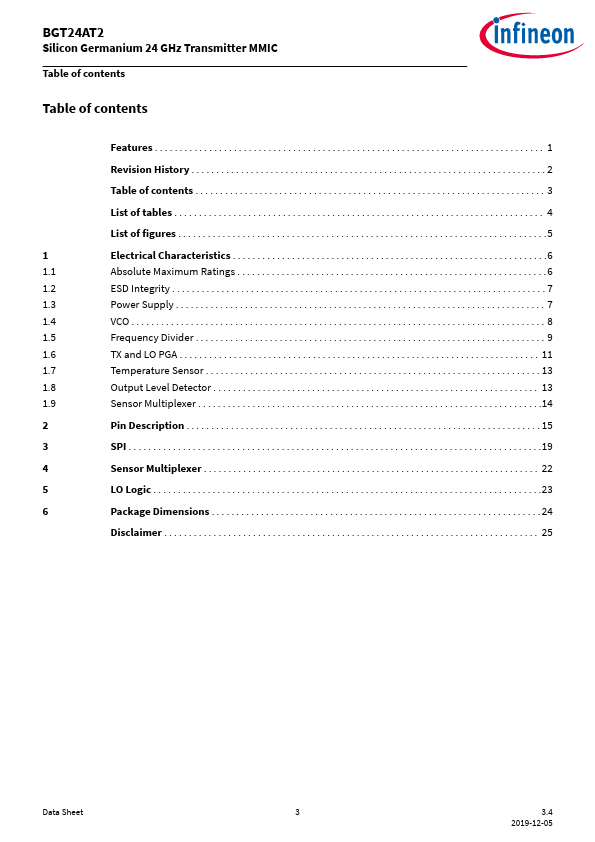

Additional preview pages of the BGT24AT2 datasheet.

Product details

Description

The BGT24AT2 is a low phase noise 24 GHz ISM band multifunction signal source, manufactured in a monolithic Silicon Germanium semiconductor process technology.

Features

24 GHz signal source with 2 transmitter outputs and 1 local oscillator output.
External / internal phase inversion and RF pulsing capability.
Programmable gain amplifiers (PGA) with 6 bit resolution.
Fully integrated low phase noise VCO.
Frequency divider with 23.5 MHz output.
On chip RF level and temperature sensors.
Muliplexed output of analog sensor signals.
Single ended RF terminals.
Single supply voltage: 3.3.
