BSC023N08NS5SC 80V MOSFET

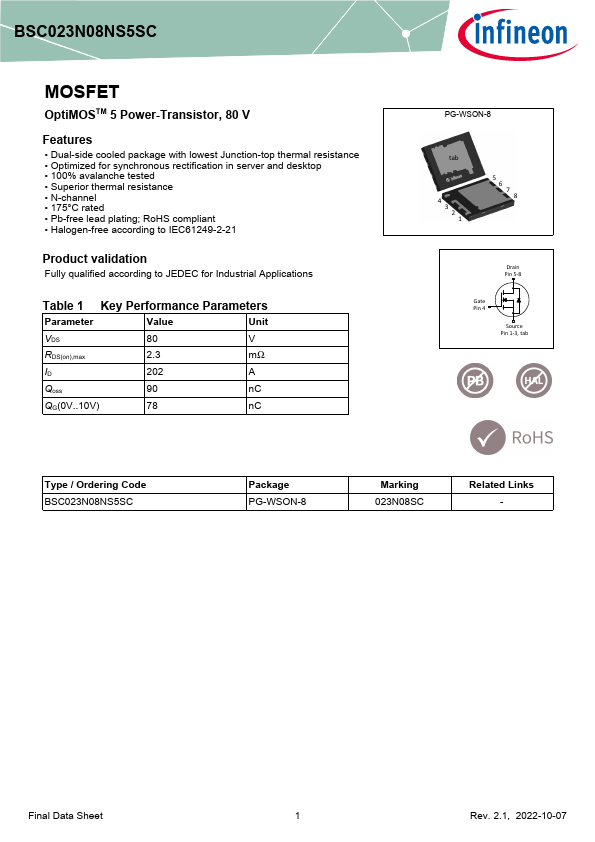

📥 Download Datasheet Datasheet Preview Page 1

Description

BSC023N08NS5SC MOSFET OptiMOSTM 5 Power-Transistor, 80 V .

📥 Download Datasheet

Preview of BSC023N08NS5SC PDF

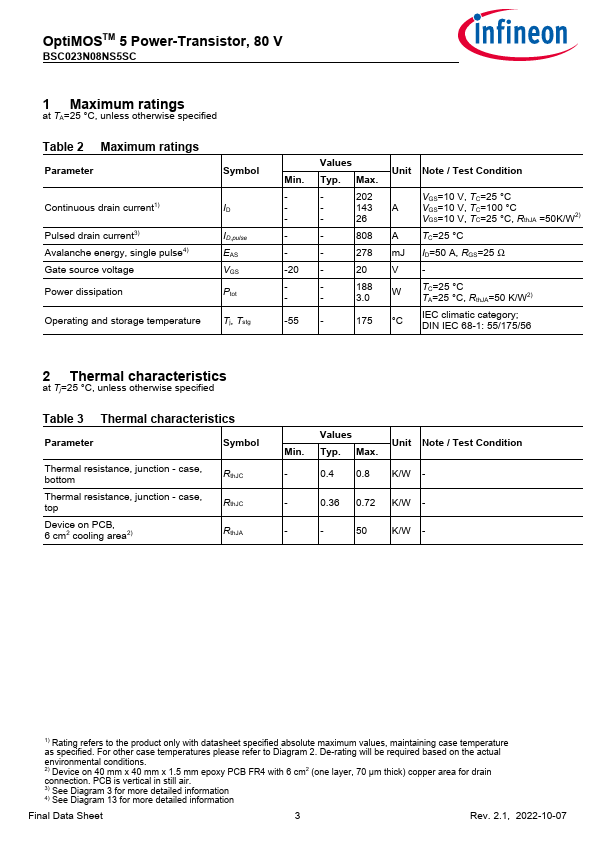

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Dual-side cooled package with lowest Junction-top thermal resistance
* Optimized for synchronous rectification in server and desktop
* 100% avalanche tested
* Superior thermal resistance
* N-channel
* 175°C rated
* Pb-free lead plating; RoHS

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 80 V RDS(on),max 2.3 mΩ ID 202 A Qoss 90 nC QG(0V. .10V) 78 nC PG-WSON-8 tab 4 3 2 1 5 6 7 8 Drain Pin 5-8 Gate Pin 4 Source Pin 1-3, tab Type / Ordering Code BSC023N08NS5SC Package PG-WSON-8 Marking 023N08SC R
