BSC024NE2LS 25V Power MOSFET

Infineon

BSC024NE2LS Description

BSC024NE2LS MOSFET OptiMOSTM Power-MOSFET, 25 V .

BSC024NE2LS Features

* Optimized for high performance Buck converter
* Very low on-resistance RDS(on) @ VGS=4.5 V
* 100% avalanche tested
* Superior thermal resistance
* N-channel

BSC024NE2LS Applications

* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Table 1 Key Performance Parameters Parameter Value Unit VDS 25 V RDS(on),max 2.4 mΩ ID 110 A QOSS 13 nC QG(0V. .10V) 23 nC SuperSO8 8 7 65 56 78 1 23 4 4321 S1 8D S2 7D S3

📥 Download Datasheet

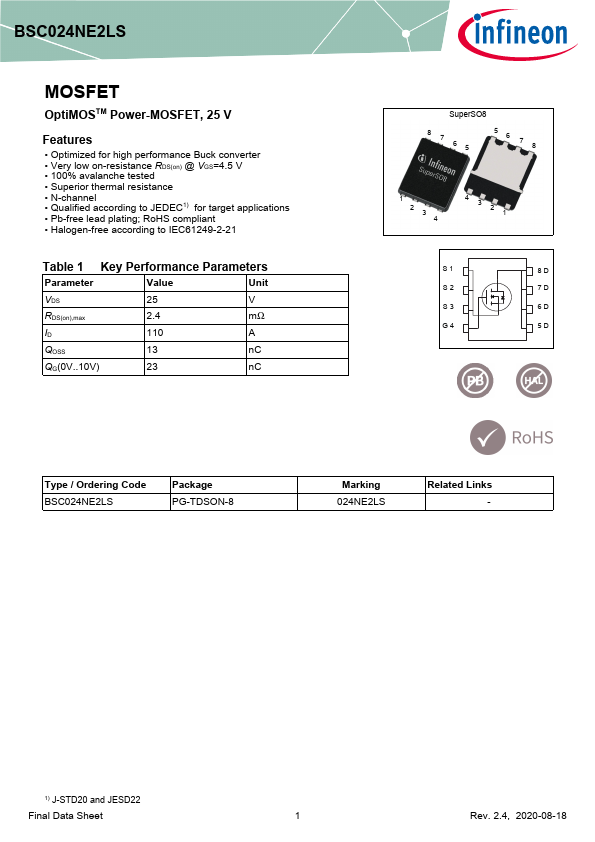

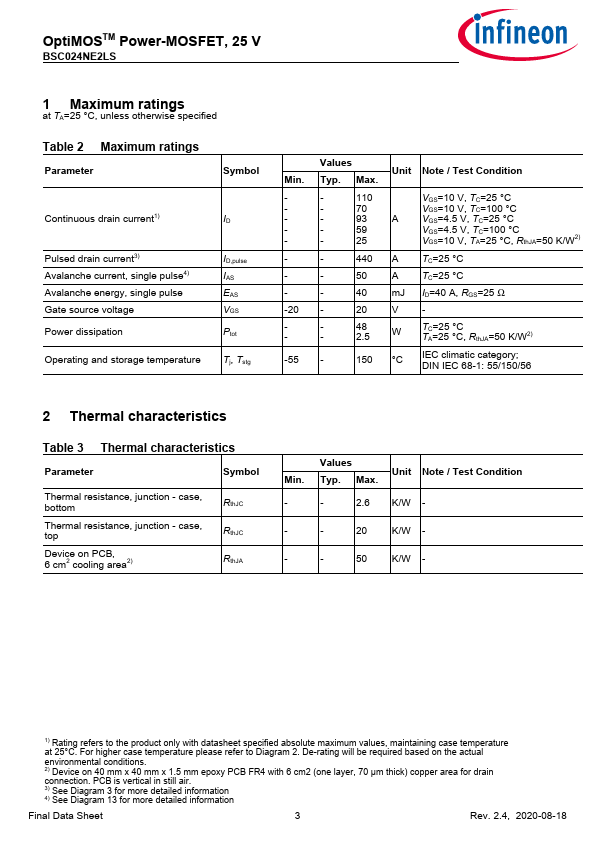

BSC024NE2LS Datasheet Preview — Preview of BSC024NE2LS PDF

Datasheet Details

Part number: BSC024NE2LS
Manufacturer: Infineon ↗
File Size: 1.33 MB
Datasheet: BSC024NE2LS-Infineon.pdf
Description: 25V Power MOSFET
