BSC040N10NS5SC 100V MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

BSC040N10NS5SC MOSFET OptiMOSTM 5 Power-Transistor, 100 V .

📥 Download Datasheet

Preview of BSC040N10NS5SC PDF

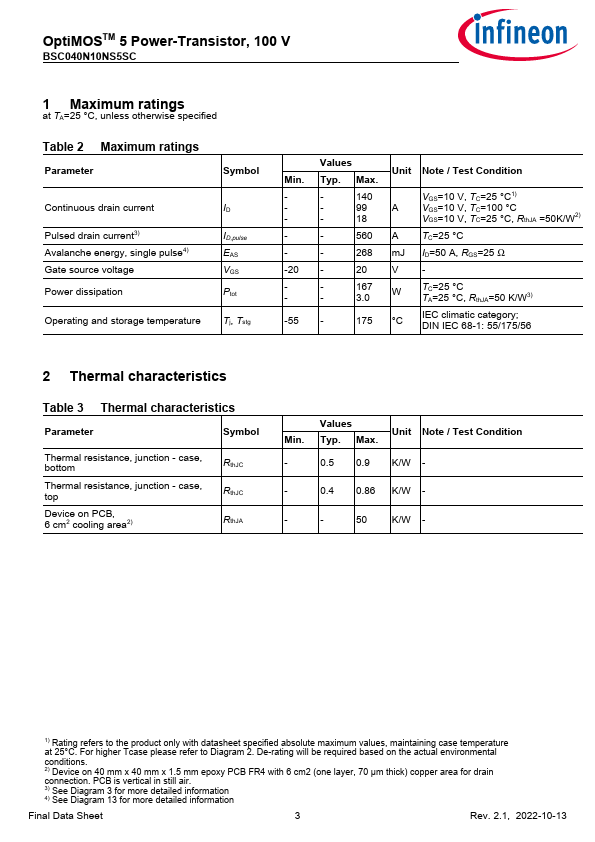

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Dual-side cooled package with lowest Junction-top thermal resistance
* 175°C rated
* Optimized for high performance SMPS, e. g. sync. rec.
* 100% avalanche tested
* Superior thermal resistance
* N-channel
* Pb-free lead plating; RoHS compliant

Applications

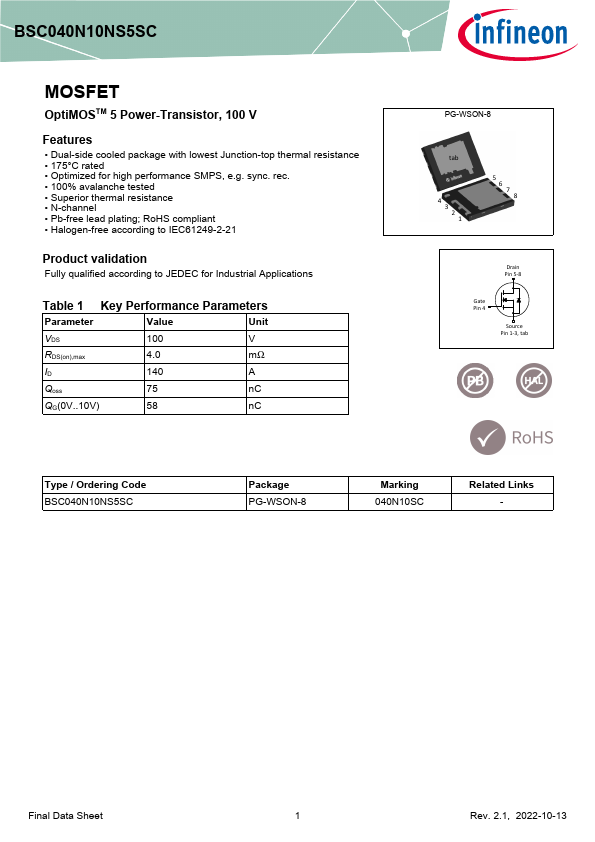

* Table 1 Key Performance Parameters Parameter Value Unit VDS 100 V RDS(on),max 4.0 mΩ ID 140 A Qoss 75 nC QG(0V. .10V) 58 nC PG-WSON-8 tab 4 3 2 1 5 6 7 8 Drain Pin 5-8 Gate Pin 4 Source Pin 1-3, tab Type / Ordering Code BSC040N10NS5SC Package PG-WSON-8 Marking 040N10SC
