BSC059N04LS6 40V MOSFET

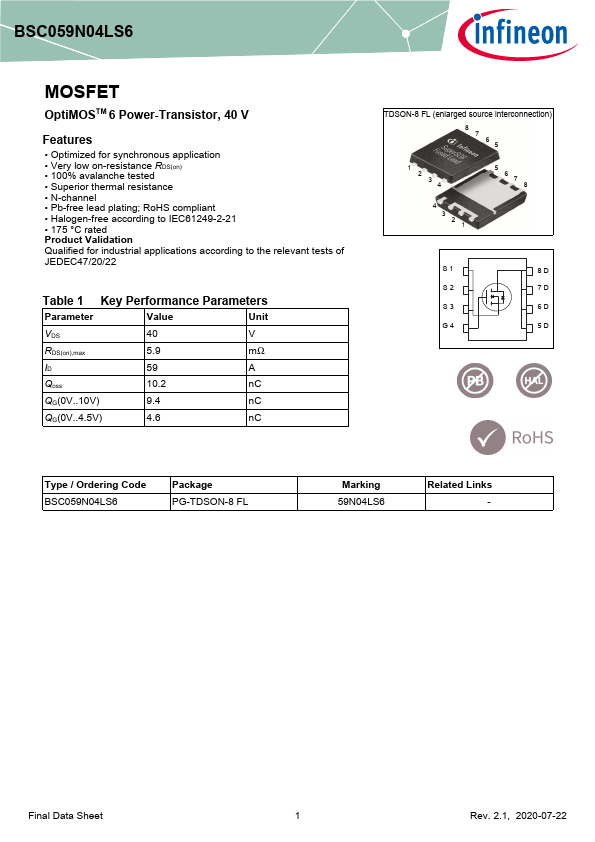

📥 Download Datasheet Datasheet Preview Page 1

Description

BSC059N04LS6 MOSFET OptiMOSTM 6 Power-Transistor, 40 V .

📥 Download Datasheet

Preview of BSC059N04LS6 PDF

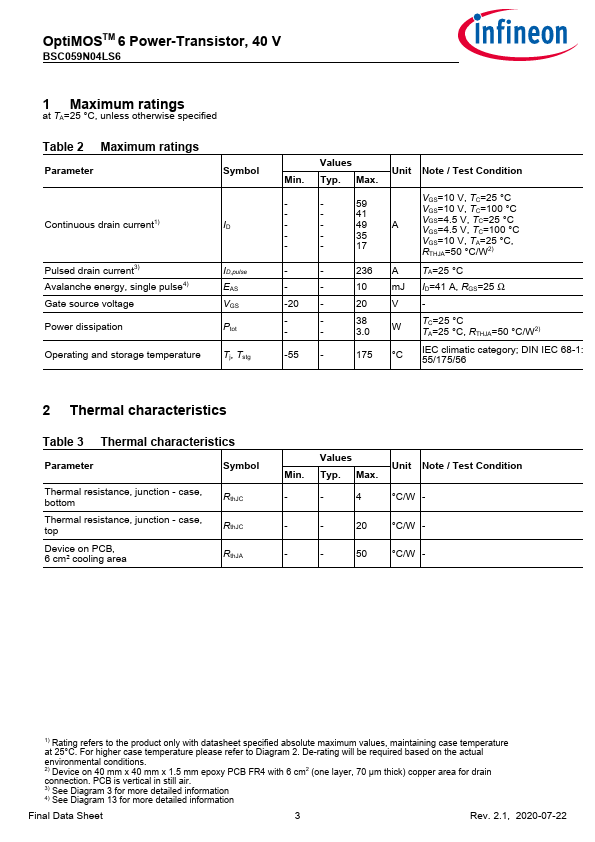

datasheet Preview Page 2 datasheet Preview Page 3

Applications

* according to the relevant tests of JEDEC47/20/22 Table 1 Key Performance Parameters Parameter Value Unit VDS 40 V RDS(on),max 5.9 mΩ ID 59 A Qoss 10.2 nC QG(0V. .10V) 9.4 nC QG(0V. .4.5V) 4.6 nC TDSON-8 FL (enlarged source interconnection) 8 7 65 1 2 3 4 4 3 2 1 5 67 8 S1
