BSC152N15LS5 150V MOSFET

Infineon

Description

BSC152N15LS5 MOSFET OptiMOSTM 5 Power-Transistor, 150 V .

📥 Download Datasheet

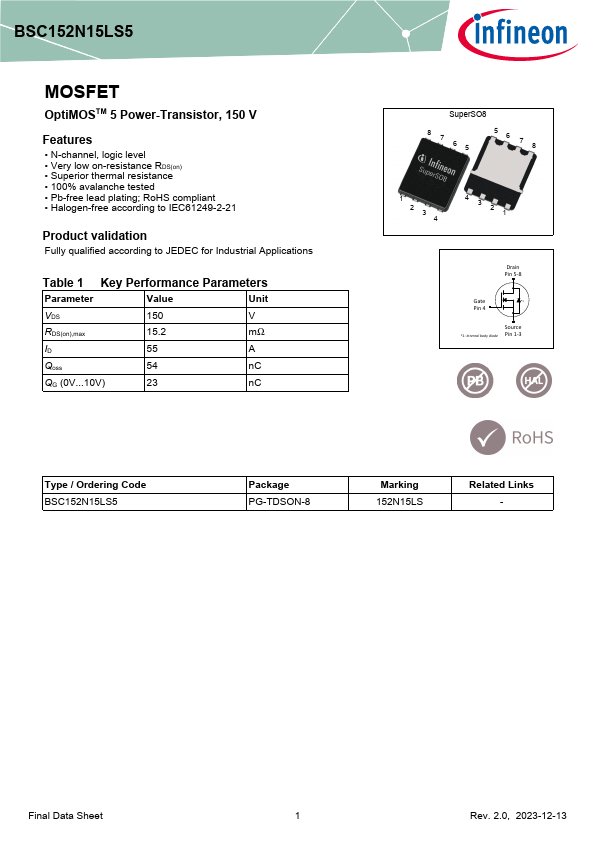

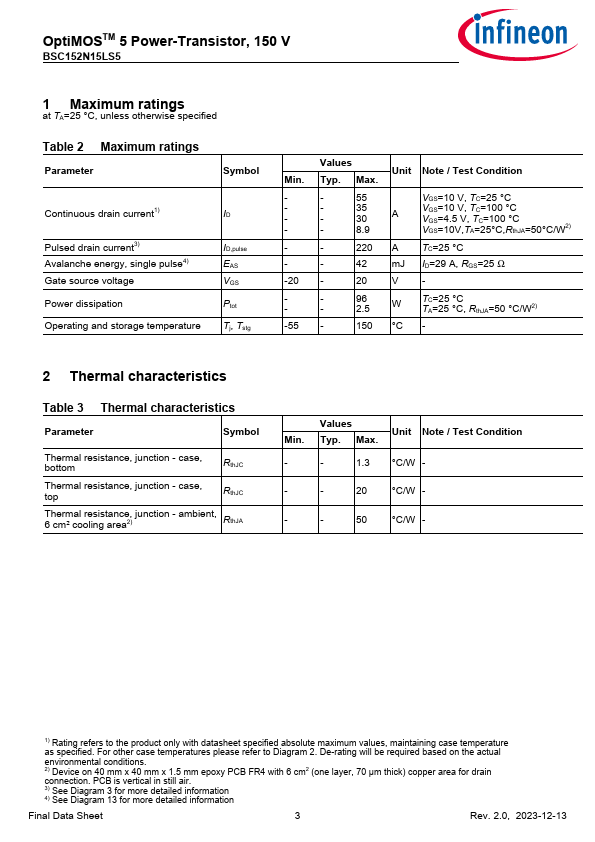

BSC152N15LS5 Datasheet Preview — Preview of BSC152N15LS5 PDF

Datasheet Specifications

Part number: BSC152N15LS5
Manufacturer: Infineon ↗
File Size: 1.39 MB
Datasheet: BSC152N15LS5-Infineon.pdf
Description: 150V MOSFET

Features

* N-channel, logic level
* Very low on-resistance RDS(on)
* Superior thermal resistance
* 100% avalanche tested
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Product validation Fully qualified according to JEDEC for I

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 150 V RDS(on),max 15.2 mΩ ID 55 A Qoss 54 nC QG (0V10V) 23 nC SuperSO8 8 7 65 56 78 1 23 4 4321 Drain Pin 5-8 Gate
* 1 Pin 4 Source
* 1: Internal body diode Pin 1-3 Type / Ordering Code BSC152N15LS5
