BSC159N10LSF, BSC159N10LSFG Power Transistor

Infineon

Description

BSC159N10LSF G OptiMOS™2 Power-Transistor .

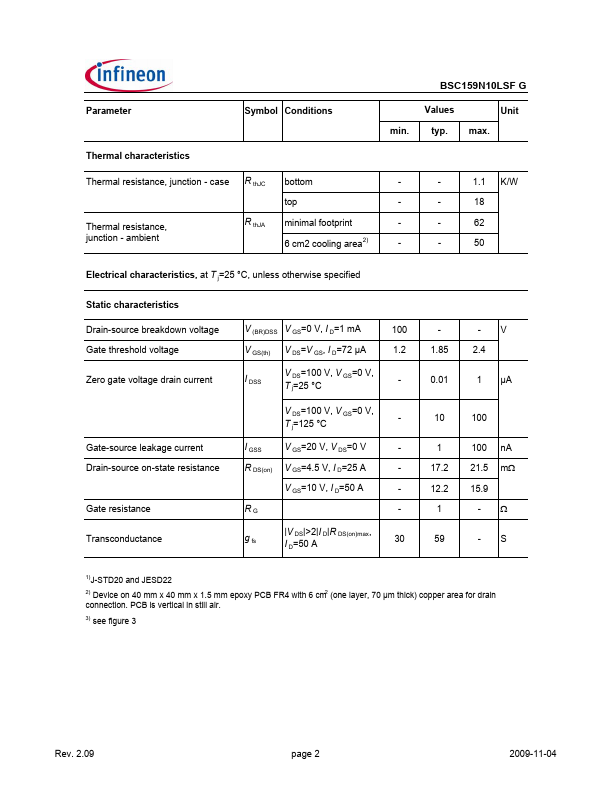

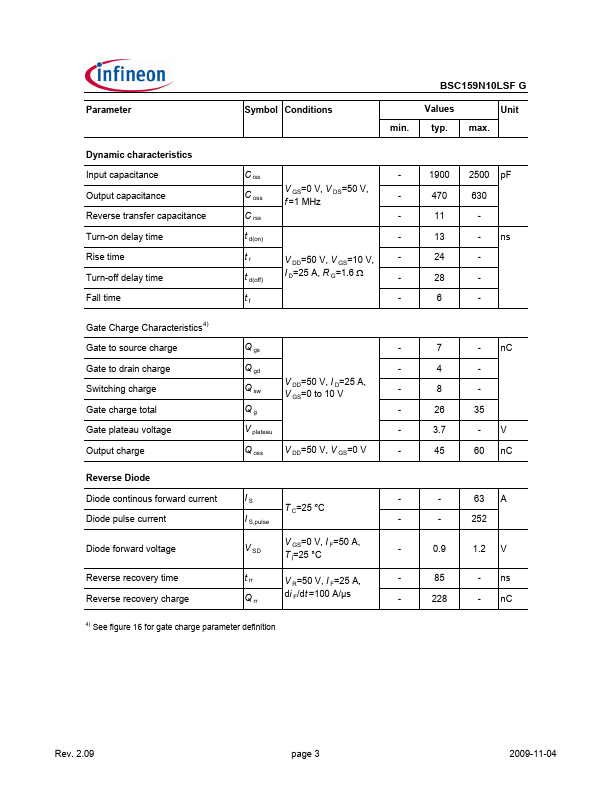

📥 Download Datasheet

BSC159N10LSF Datasheet Preview — This datasheet PDF includes multiple part numbers: BSC159N10LSF, BSC159N10LSFG. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BSC159N10LSF, BSC159N10LSFG
Manufacturer: Infineon ↗
File Size: 426.48 KB
Datasheet: BSC159N10LSFG-Infineon.pdf
Description: Power Transistor
Note: This datasheet PDF includes multiple part numbers: BSC159N10LSF, BSC159N10LSFG.
Please refer to the document for exact specifications by model.

Features

* N-channel, logic level
* Very low gate charge x R DS(on) product (FOM)
* Low on-resistance R DS(on)
* 150 °C operating temperature Product Summary V DS R DS(on),max ID 100 V 15.9 mΩ 63 A PG-TDSON-8
* Pb-free lead plating; RoHS compliant; Halogen Free
