BTM9010EP Datasheet - Infineon

BTM9010EP full-bridge IC

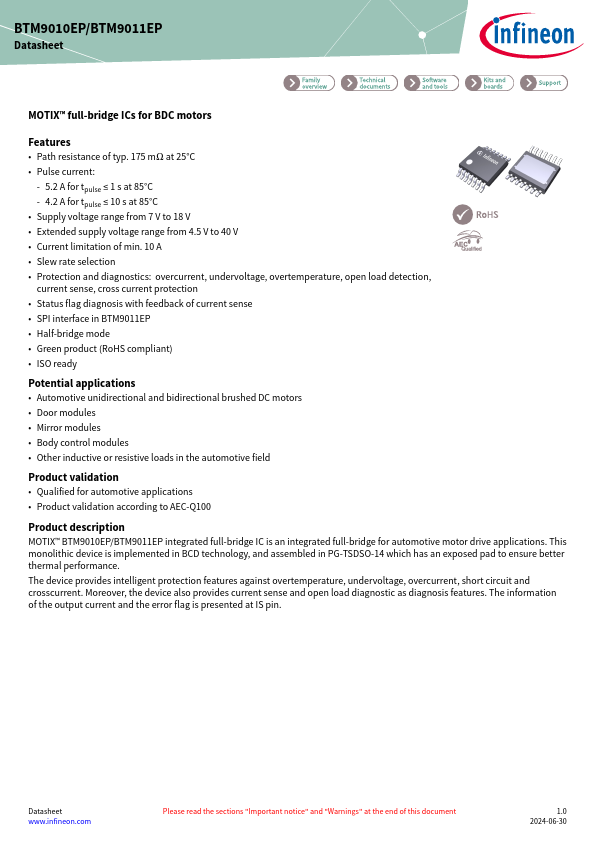

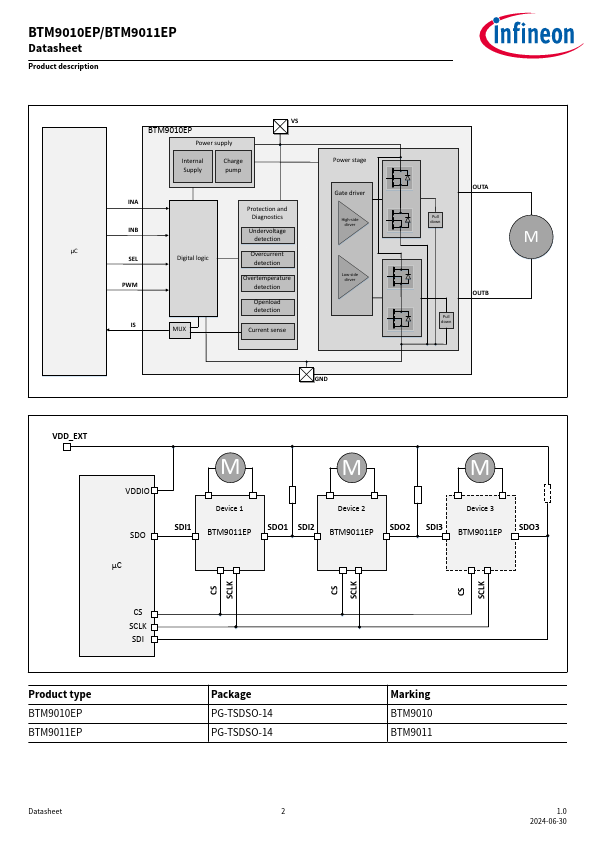

MOTIX™ BTM9010EP/BTM9011EP integrated full-bridge IC is an integrated full-bridge for automotive motor drive applications. This monolithic device is implemented in BCD technology, and assembled in PG-TSDSO-14 which has an exposed pad to ensure better thermal performance. The device provides intellig.

BTM9010EP Features

* Path resistance of typ. 175 mΩ at 25°C

* Pulse current: - 5.2 A for tpulse ≤ 1 s at 85°C - 4.2 A for tpulse ≤ 10 s at 85°C

* Supply voltage range from 7 V to 18 V

* Extended supply voltage range from 4.5 V to 40 V

* Current limitation of min. 10 A

BTM9010EP Datasheet (1.27 MB)

Preview of BTM9010EP PDF

Datasheet Details

Part number:

BTM9010EP

Manufacturer:

Infineon ↗

File Size:

1.27 MB

Description:

Full-bridge ic.
