BTS50007-1LUA

12V smart high-side power switch

BTS50007-1LUA Features

* PRO-SIL™ ISO 26262-ready for supporting the integrator in evaluation of hardware element according to ISO 26262:2018 Clause 8-13

* One channel device

* Low stand-by current

* Reverse ON protection for low power dissipation in reverse battery condition

* Grou

BTS50007-1LUA General Description

The device is a 0.7 mΩ single channel smart high-side power switch, available in a PG-HSOF-8 package, providing protective functions and diagnosis. It contains Reverse ON functionality. It is especially designed to drive high current loads, for applications like heaters, glow plugs, fans and pumps. .

BTS50007-1LUA Datasheet (4.50 MB)

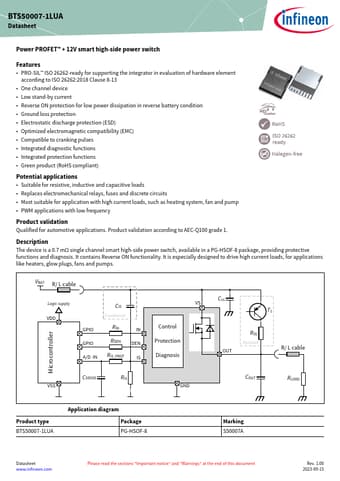

Preview of BTS50007-1LUA PDF

Datasheet Details

Part number:

BTS50007-1LUA

Manufacturer:

Infineon ↗

File Size:

4.50 MB

Description:

12v smart high-side power switch.
