BTT6010-1ERA Datasheet - Infineon

Smart High-Side Power Switch

BTT6010-1ERA Features

* One channel device

* Very low stand-by current

* 3.3 V and 5 V compatible logic inputs

* Electrostatic discharge protection (ESD)

* Optimized electromagnetic compatibility

* Logic ground independent from load ground

* Very low power DMOS leak

BTT6010-1ERA General Description

The BTT6010-1ERA is a 10 mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. I.

BTT6010-1ERA Datasheet (809.68 KB)

Preview of BTT6010-1ERA PDF

Datasheet Details

Part number:

BTT6010-1ERA

Manufacturer:

Infineon ↗

File Size:

809.68 KB

Description:

Smart high-side power switch.

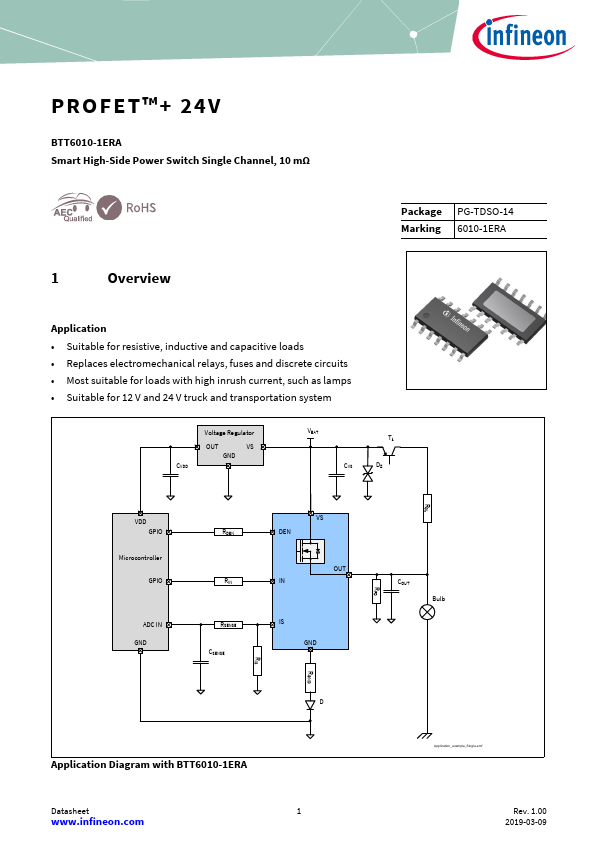

PROFET™+ 24V BTT6010-1ERA Smart High-Side Power Switch Single Channel, 10 mΩ Package PG-TDSO-14 Marking 6010-1ERA 1 Overview Application .

📁 Related Datasheet

BTT6010-1ERB Smart High-Side Power Switch (Infineon)

BTT6010-1EKA Smart High-Side Power Switch (Infineon)

BTT6010-1EKB Smart High-Side Power Switch (Infineon)

BTT6020-1EKA Smart High-Side Power Switch (Infineon)

BTT6020-1ERA Smart High-Side Power Switch (Infineon)

BTT6030-1EKA Smart High-Side Power Switch (Infineon)

BTT6030-1ERA Smart High-Side Power Switch (Infineon)

BTT6030-2EKA Smart High-Side Power Switch (Infineon)

BTT6030-2ERA Smart High-Side Power Switch (Infineon)

BTT6030-2ERB Smart High-Side Power Switch (Infineon)

TAGS

BTT6010-1ERA Smart High-Side Power Switch Infineon

Image Gallery

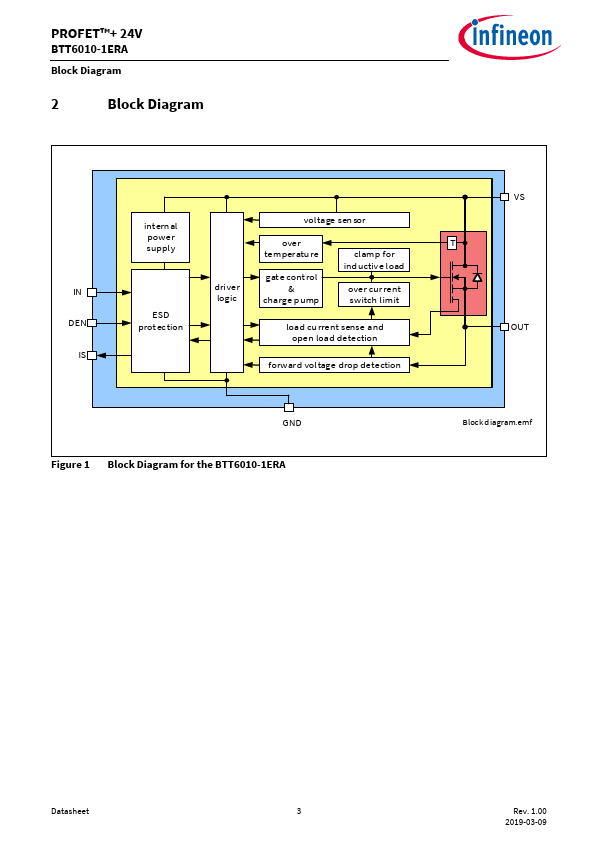

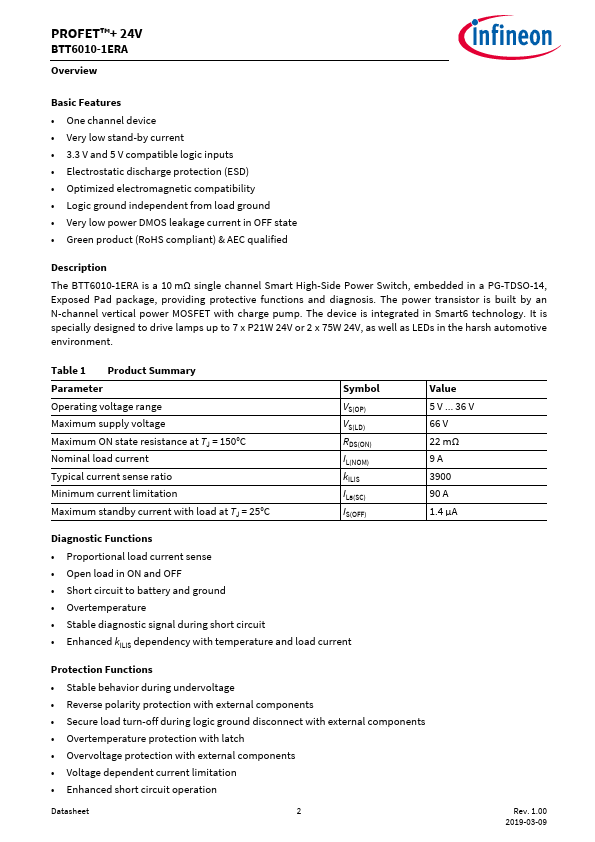

BTT6010-1ERA Datasheet Preview Page 2 BTT6010-1ERA Datasheet Preview Page 3
