BTT6010-1ERB Datasheet - Infineon

Smart High-Side Power Switch

BTT6010-1ERB Features

* One channel device

* Very low stand-by current

* 3.3 V and 5 V compatible logic inputs

* Electrostatic discharge protection (ESD)

* Optimized electromagnetic compatibility

* Logic ground independent of load ground

* Very low power DMOS leakag

BTT6010-1ERB General Description

The BTT6010-1ERB is a 10 mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. I.

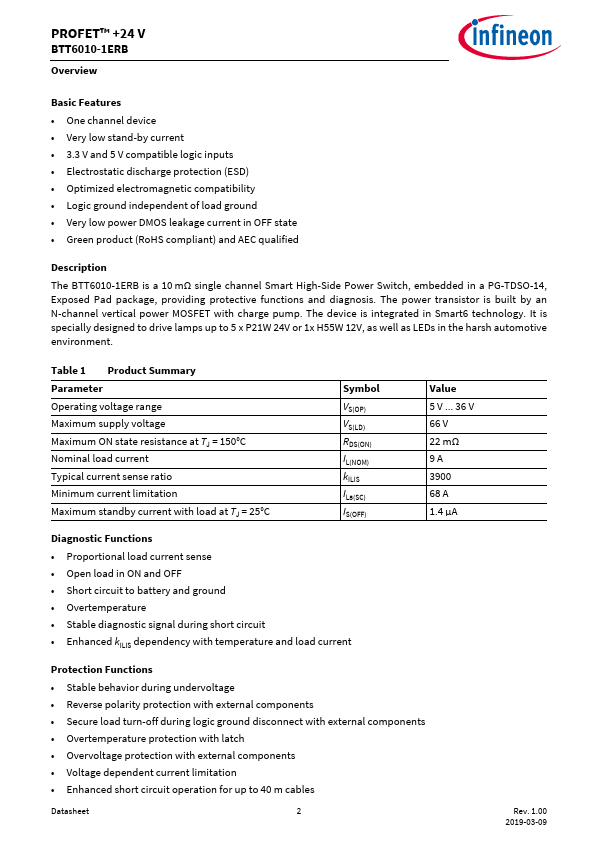

BTT6010-1ERB Datasheet (776.77 KB)

Preview of BTT6010-1ERB PDF

Datasheet Details

Part number:

BTT6010-1ERB

Manufacturer:

Infineon ↗

File Size:

776.77 KB

Description:

Smart high-side power switch.

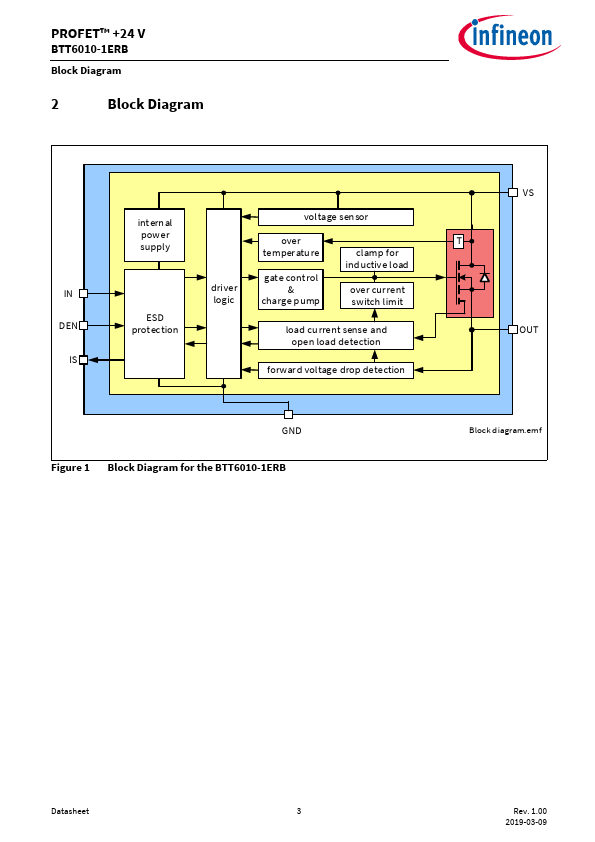

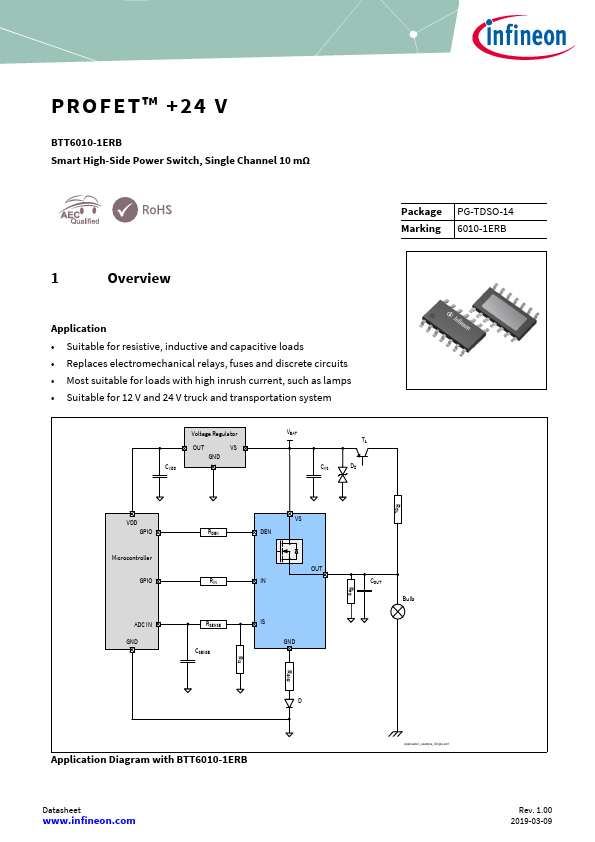

PROFET™ +24 V BTT6010-1ERB Smart High-Side Power Switch, Single Channel 10 mΩ Package PG-TDSO-14 Marking 6010-1ERB 1 Overview Application .
