BTT6200-1ENA Datasheet - Infineon

Smart High-Side Power Switch

BTT6200-1ENA Features

* Single channel device

* Very low stand-by current

* 3.3 V and 5 V compatible logic inputs

* Electrostatic discharge protection (ESD)

* Optimized electromagnetic compatibility

* Logic ground independent from load ground

* Very low power DMOS l

BTT6200-1ENA General Description

The BTT6200-1ENA is a 200 mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-8-31, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 HV technol.

BTT6200-1ENA Datasheet (815.62 KB)

Preview of BTT6200-1ENA PDF

Datasheet Details

Part number:

BTT6200-1ENA

Manufacturer:

Infineon ↗

File Size:

815.62 KB

Description:

Smart high-side power switch.

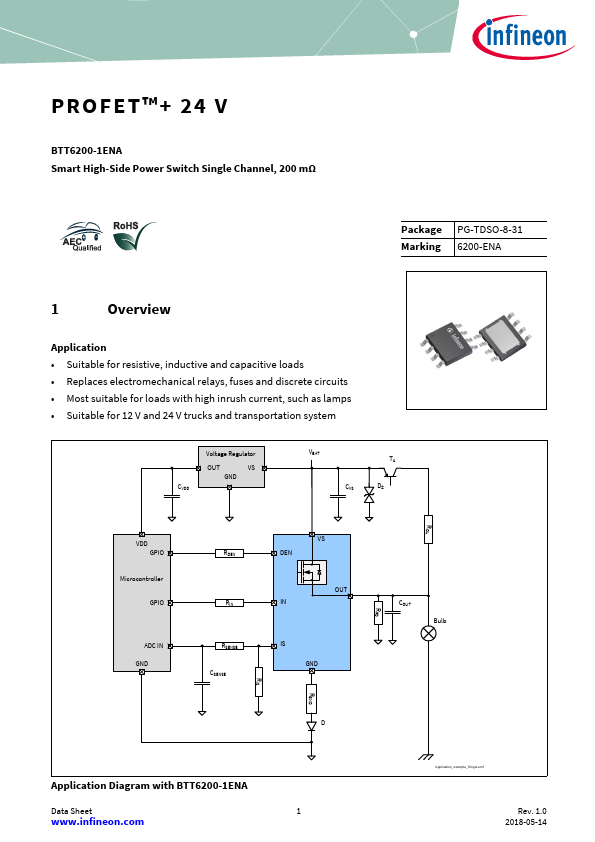

PROFET™+ 24 V BTT6200-1ENA Smart High-Side Power Switch Single Channel, 200 mΩ Package PG-TDSO-8-31 Marking 6200-ENA 1 Overview Application

📁 Related Datasheet

BTT6200-1EJA Smart High-Side Power Switch (Infineon)

BTT6200-4EMA Smart High-Side Power Switch (Infineon)

BTT6200-4ESA quad channel Smart High-Side Power Switch (Infineon)

BTT6010-1EKA Smart High-Side Power Switch (Infineon)

BTT6010-1EKB Smart High-Side Power Switch (Infineon)

BTT6010-1ERA Smart High-Side Power Switch (Infineon)

BTT6010-1ERB Smart High-Side Power Switch (Infineon)

BTT6020-1EKA Smart High-Side Power Switch (Infineon)

BTT6020-1ERA Smart High-Side Power Switch (Infineon)

BTT6030-1EKA Smart High-Side Power Switch (Infineon)

TAGS

BTT6200-1ENA Smart High-Side Power Switch Infineon

Image Gallery

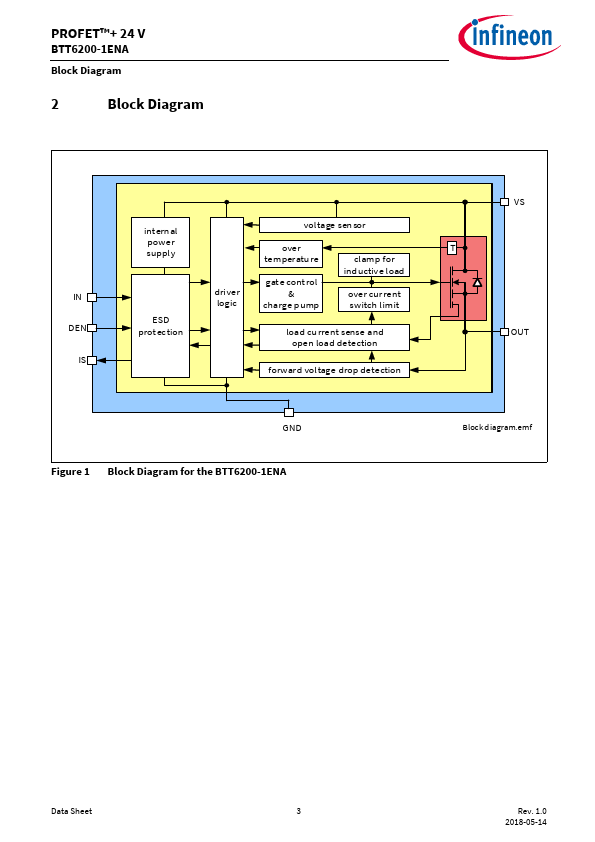

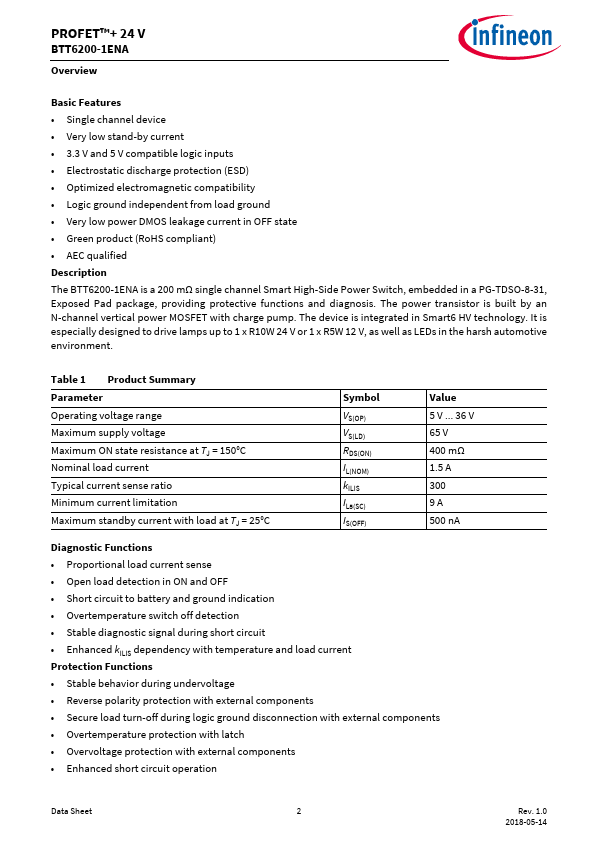

BTT6200-1ENA Datasheet Preview Page 2 BTT6200-1ENA Datasheet Preview Page 3
