CYPM1321-97BZXI, CYPM1311-48LDXI - PMG1-S3 Power Delivery MCU Gen1

Infineon

Datasheet Details

Part number	CYPM1321-97BZXI, CYPM1311-48LDXI
Manufacturer	Infineon ↗
File Size	613.91 KB
Description	PMG1-S3 Power Delivery MCU Gen1
Datasheet	CYPM1311-48LDXI-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: CYPM1321-97BZXI, CYPM1311-48LDXI. Please refer to the document for exact specifications by model.

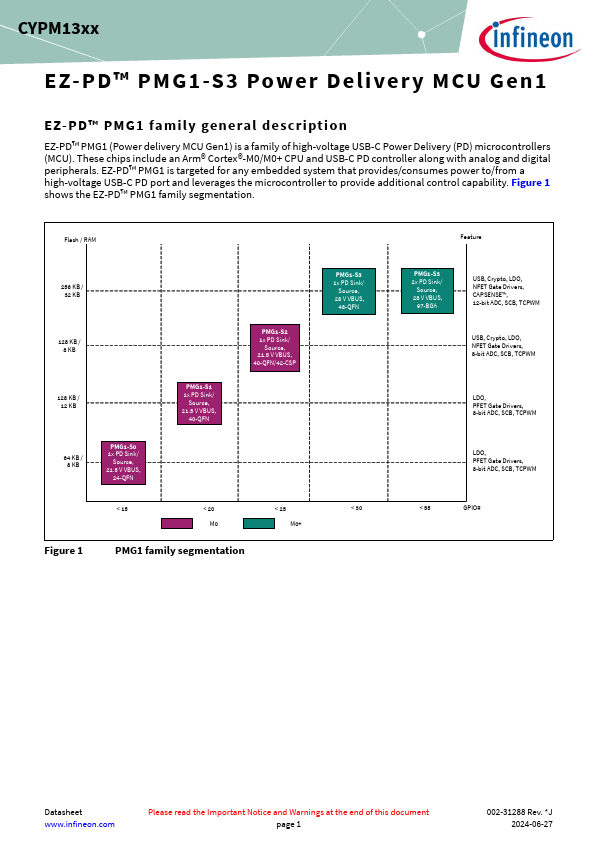

EZ-PD™ PMG1 (Power delivery MCU Gen1) is a family of high-voltage USB-C Power Delivery (PD) microcontrollers (MCU).

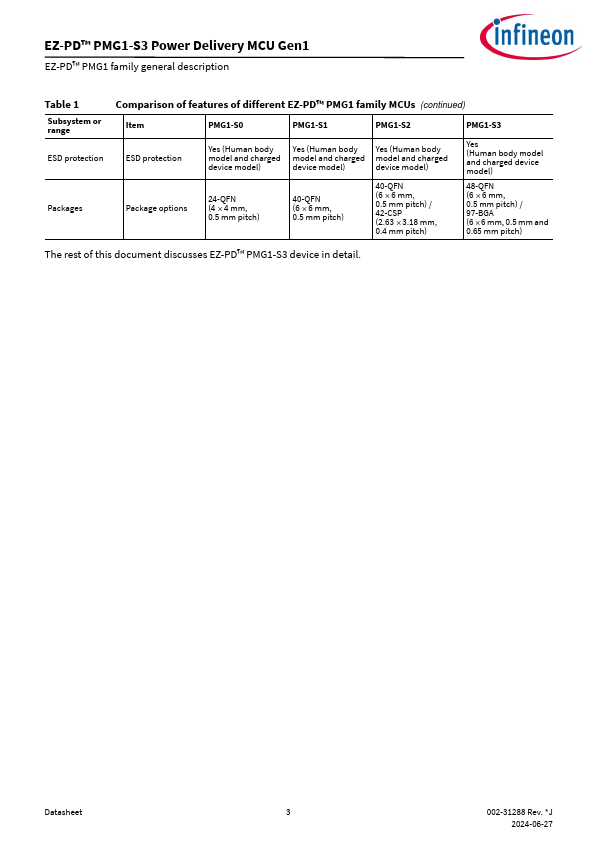

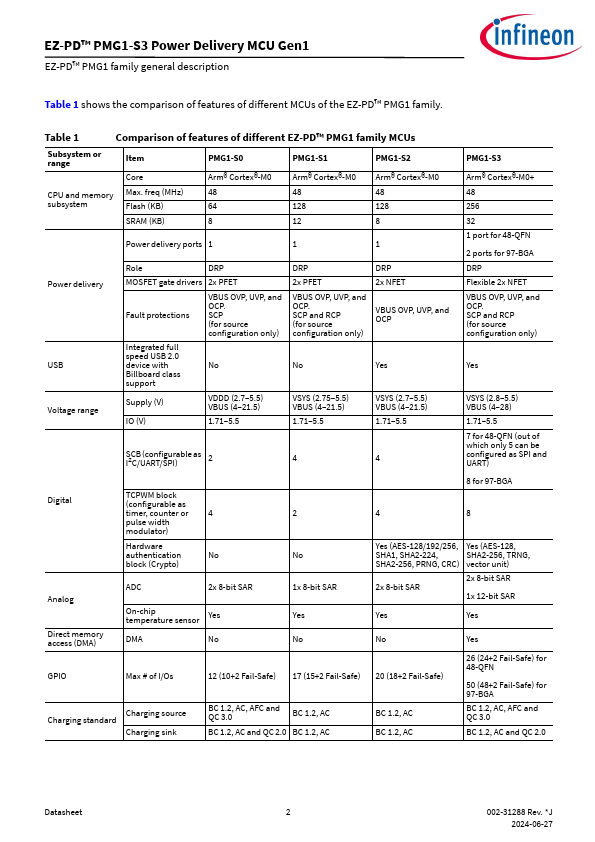

of different MCUs of the EZ-PD™ PMG1 family. Table 1 Comparison of features of different EZ-PD™ PMG1 family MCUs Subsystem or range Item PMG1-S0 PMG1-S1 PMG1-S2 Core Arm® Cortex®-M0 Arm® Cortex®-M0 Arm® Cortex®-M0 CPU and memory Max. freq (MHz) 48 subsystem Flash (KB) 64 48 48 128 128 SRAM (KB) 8 12 8 Power delivery ports 1 1 1 Power delivery USB Voltage range Role DRP MOSFET gate drivers 2x PFET Fault protections VBUS OVP, UVP, and OCP. SCP (for source configurati.
