CYP15G0403DX, Independent Clocking Quad Transceiver

m o PRELIMINARY CYP15G0403DX .c U 4 t Independent Clocking Quad HOTLink II™ Transceiver e e h S .
The CYP15G0403DX Quad HOTLink II™ is a point-to-point building block allowing the transfer of data over independent high-speed serial links at signal.

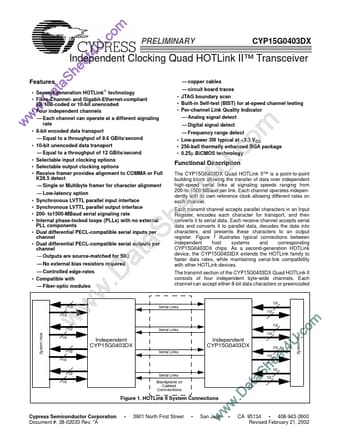

datasheet Preview Page 1 from Datasheet4u.com

CYP15G0403DX_CypressSemiconductor.pdf

CYP15G0403DX Datasheet Preview — Preview of CYP15G0403DX PDF

Datasheet Details

Part number:

CYP15G0403DX

Manufacturer:

Cypress Semiconductor

File Size:

797.65 KB

Description:

Independent Clocking Quad Transceiver

Features

* a at . D w w w
* copper cables
* Second-generation HOTLink technology
* Fibre-Channel- and Gigabit-Ethernet-compliant 8B/10B-coded or 10-bit unencoded
* Four independent channels
* Each channel can operate at a different signaling rate
* 8-bit encoded

Applications

* where parallel interfaces can be replaced with high-speed, point-to-point serial links. Some applications include interconnecting backplanes on switches, routers, servers and video transmission systems Transceiver Logic Block Diagram RXDB[7:0] RXSTB[2:0] RXDA[7:0] RXSTA[2:0] RXDC[7:0] RXSTC[2:0] TXD
