CYPD3174, CYPD3171 Datasheet - Infineon

CYPD3174, CYPD3171, CCG3PA Consumer USB Type-C port controller

CYPD3171, CYPD3174, CYPD3175 EZ-PD™ CCG3PA Consumer USB Type-C port controller General .
EZ-PD™ CCG3PA is Infineon’s highly integrated USB Type-C port controller that complies with the latest USB Type-C and PD standards and is targeted for.

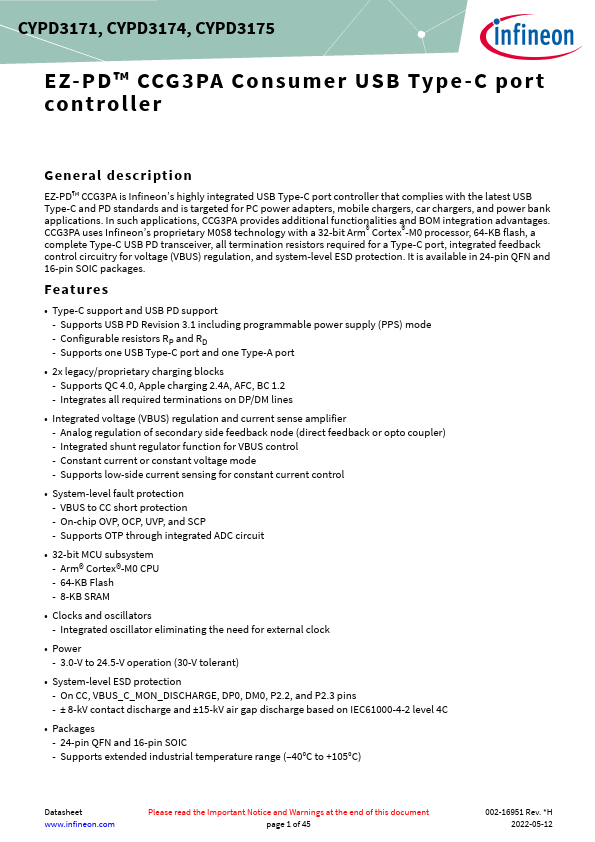

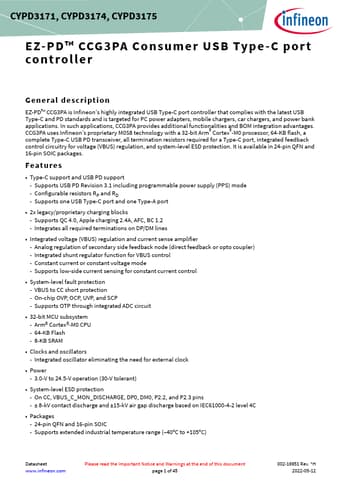

datasheet Preview Page 1 from Datasheet4u.com

CYPD3171-Infineon.pdf

CYPD3174 Datasheet Preview — This datasheet PDF includes multiple part numbers: CYPD3174, CYPD3171. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CYPD3174, CYPD3171

Manufacturer:

Infineon ↗

File Size:

413.62 KB

Description:

CCG3PA Consumer USB Type-C port controller

Note:

This datasheet PDF includes multiple part numbers: CYPD3174, CYPD3171.
Please refer to the document for exact specifications by model.

Features

* Type-C support and USB PD support - Supports USB PD Revision 3.1 including programmable power supply (PPS) mode - Configurable resistors RP and RD - Supports one USB Type-C port and one Type-A port
* 2x legacy/proprietary charging blocks - Supports QC 4.0, Apple charging 2.4A, AFC,

Applications

* In such applications, CCG3PA provides additional functionalities and BOM integration advantages. CCG3PA uses Infineon’s proprietary M0S8 technology with a 32-bit Arm® Cortex®-M0 processor, 64-KB flash, a complete Type-C USB PD transceiver, all termination resistors required for a Type-C port, integ
