CYPD6139, CYPD6129 Datasheet - Infineon

CYPD6139 CCG6_CFP USB-C Power Delivery (PD) controller

EZ-PD™ CCG6_CFP is a dual-port and single-port USB-C Power Delivery (PD) controller that complies with the latest USB Type-C and PD specifications. This device provides a complete USB Type-C and USB PD port control solution for dual-role power (DRP) host platforms. This device includes a VBUS provi.

CYPD6139 Features

* USB PD - Supports the latest USB PD specification, revision 3.2 - Fast role swap (FRS) - Extended data messaging

* USB Type-C - Integrated current sources for the downstream-facing port (DFP)[2] role (Rp)

* Default current at 900 mA

* 1.5 A

* 3A - Integrat

CYPD6129-Infineon.pdf

This datasheet PDF includes multiple part numbers: CYPD6139, CYPD6129. Please refer to the document for exact specifications by model.

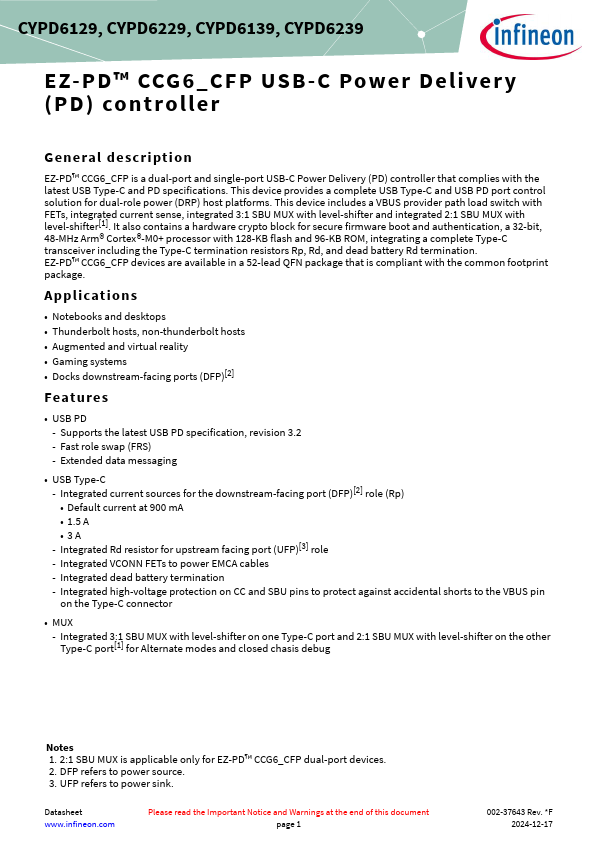

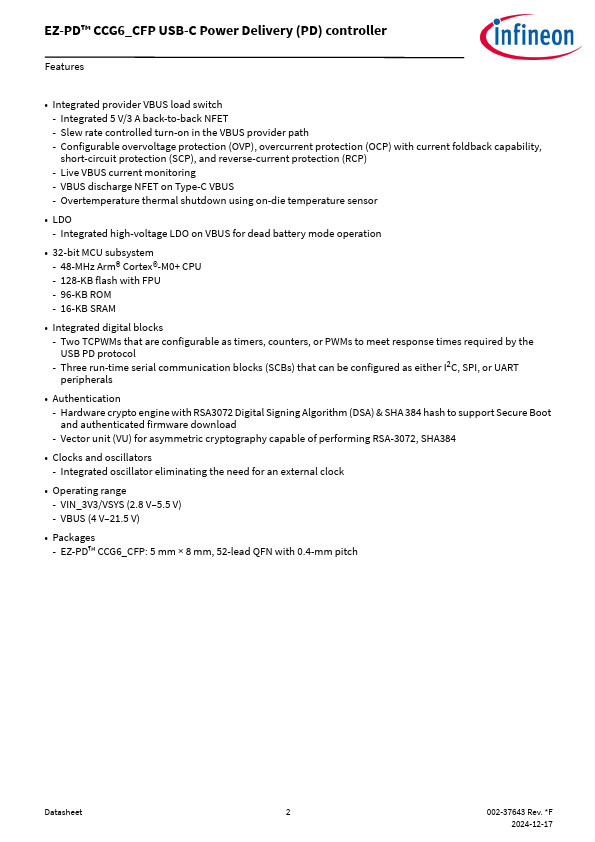

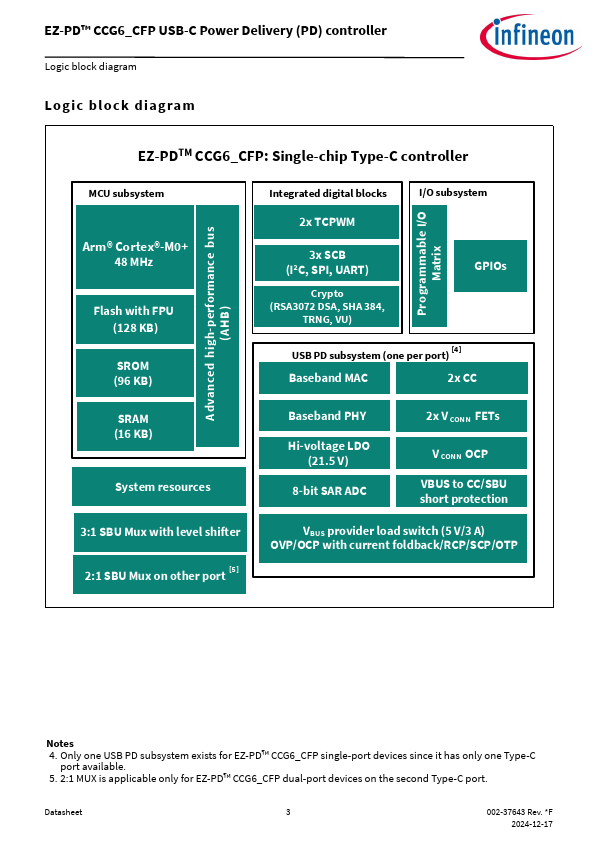

CYPD6139 Datasheet Preview Page 2 CYPD6139 Datasheet Preview Page 3

Datasheet Details

Part number:

CYPD6139, CYPD6129

Manufacturer:

Infineon ↗

File Size:

870.54 KB

Description:

Ccg6_cfp usb-c power delivery (pd) controller.

Note:

This datasheet PDF includes multiple part numbers: CYPD6139, CYPD6129.
Please refer to the document for exact specifications by model.
