CYPAP211 - PAG2P primary-side startup controller

Infineon

CYPAP211 Datasheet Preview — Preview of CYPAP211 PDF

Datasheet Details

Part number	CYPAP211
Manufacturer	Infineon ↗
File Size	550.93 KB
Description	PAG2P primary-side startup controller
Datasheet	CYPAP211-Infineon.pdf

CYPAP211 Product details

Description

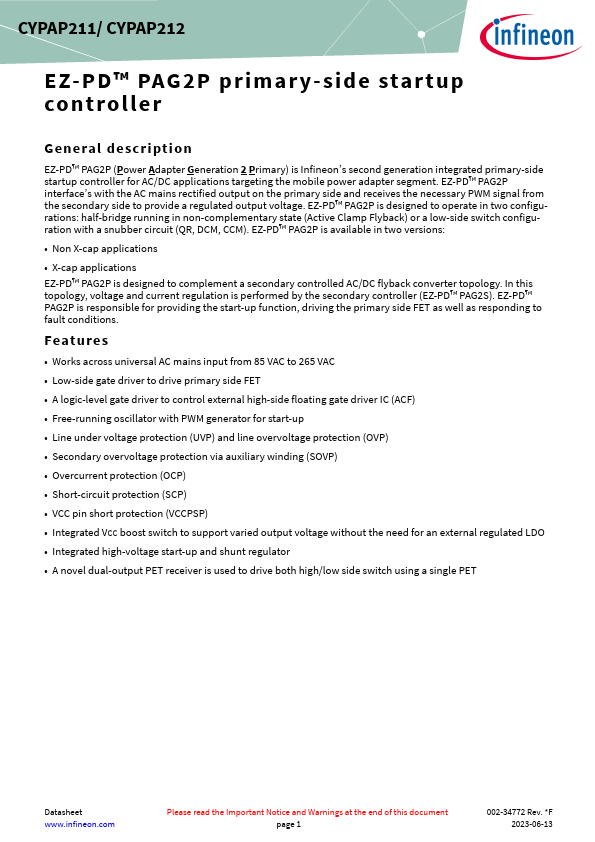

EZ-PD™ PAG2P (Power Adapter Generation 2 Primary) is Infineon’s second generation integrated primary-side startup controller for AC/DC applications targeting the mobile power adapter segment.

Features

Works across universal AC mains input from 85 VAC to 265 VAC.
Low-side gate driver to drive primary side FET.
A logic-level gate driver to control external high-side floating gate driver IC (ACF).
Free-running oscillator with PWM generator for start-up.
Line under voltage protection (UVP) and line overvoltage protection (OVP).
Secondary overvoltage protection via auxiliary winding (SOVP).
Overcurrent protection (OCP).
Short.
