D1065C5

SiC Schottky Barrier diodes

D1065C5 Features

* Revolutionary semiconductor material - Silicon Carbide

* Benchmark switching behavior

* No reverse recovery/ No forward recovery

* Temperature independent switching behavior

* High surge current capability

* Pb-free lead plating; RoHS compliant

* Qualified according to

D1065C5 General Description

ThinQ!™ Generation 5 represents Infineon leading edge technology for the SiC Schottky Barrier diodes. Thanks to the more compact design and thinwafer technology, the new family of products shows improved efficiency over all load conditions, resulting from both the improved thermal characteristics a.

D1065C5 Datasheet (1.14 MB)

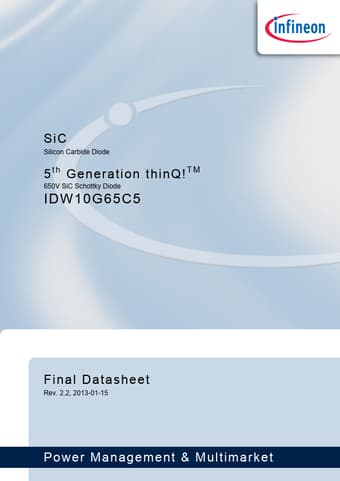

Preview of D1065C5 PDF

Datasheet Details

Part number:

D1065C5

Manufacturer:

Infineon ↗

File Size:

1.14 MB

Description:

Sic schottky barrier diodes.
SiC Silicon Carbide Diode 5th Generation thinQ!TM 650V SiC Schottky Diode IDW10G65C5 Final Datasheet Rev. 2.2, 2013-01-15 Power Management & Multimark.
