D1031SH Datasheet - Infineon

D1031SH - Fast Hard Drive Diode

Schnelle beschaltungslose Diode Fast Hard Drive Diode Technische Information / technical information D1031SH Key Peanranmdaetteenrs VRRM IFAVM IFSM VT0 rT RthJC Clamping Force Max.

Diameter Contact Diameter Height 4500 V 1120 A (TC=85 °C) 32537000A0 A(TC=55°C) 1,78 V 0,968 mΩ 10 K/kW 27 … 45 kN 100 mm 62,8 mm 26 mm For type designation please refer to actual short form catalog http://www.ifbip.com/catalog Merkmale Volle Sperrfähigkeit 50/60Hz über einen weiten Temperaturbereich

D1031SH Features

* Full blocking capability 50/60Hz over a wide temperature range

* High DC blocking stability

* High surge current capability

* High case non-rupture current

* Soft turn-off behavior at high turn-off di/dt Typische Anwendungen

* Mittelspannungsumrichter

* Freilaufdiode f

D1031SH-Infineon.pdf

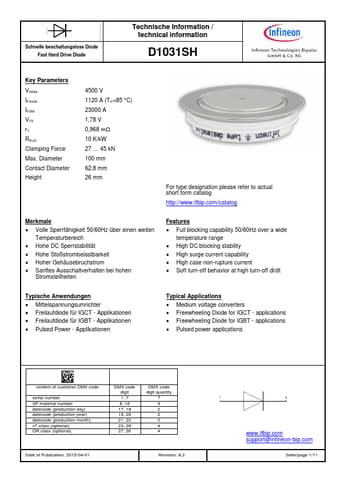

Preview of D1031SH PDF
D1031SH Datasheet Preview Page 2 D1031SH Datasheet Preview Page 3

Datasheet Details

Part number:

D1031SH

Manufacturer:

Infineon ↗

File Size:

352.08 KB

Description:

Fast hard drive diode.
