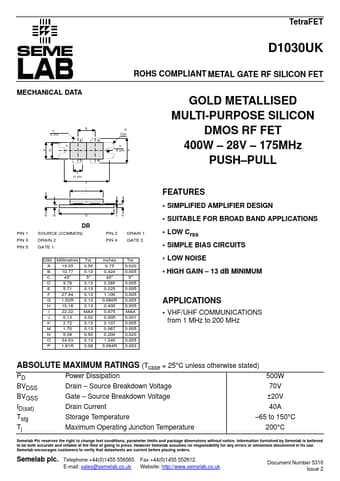

D1030UK METAL GATE RF SILICON FET

TetraFET D1030UK ROHS COMPLIANT METAL GATE RF SILICON FET MECHANICAL DATA C (2 pls) 1 HD B 2 3 5 4 E (4 pls) F I G (typ) P (2 pls) A PIN 1 PIN 3 PIN 5 NM O DR SOURCE (COMMON) DRAIN 2 GATE 1 JK PIN 2 PIN 4 DRAIN 1 GATE 2 DIM Millimetres Tol. A 19.05 0.50 B 10.77 0.13 C 45° 5° D 9.78 0.13 E 5.71 0.13 F 27.94 0.13 G 1.52R 0.13 H 10.16 0.13 I 22.22 MAX J 0.13 0.02 K 2.72 0.13 M 1.70 0.13 N 5.08 0.50 O 34.03 0.13 P 1.61R 0.08 Inches 0.75 0.424 45° 0.38.

D1030UK Features

* SIMPLIFIED AMPLIFIER DESIGN

* SUITABLE FOR BROAD BAND APPLICATIONS

* LOW Crss

* SIMPLE BIAS CIRCUITS

* LOW NOISE

* HIGH GAIN

* 13 dB MINIMUM APPLICATIONS

* VHF/UHF COMMUNICATIONS from 1 MHz to 200 MHz ABSOLUTE MAXIMUM RATINGS (Tcase
