D1721NH Crow Bar Diode

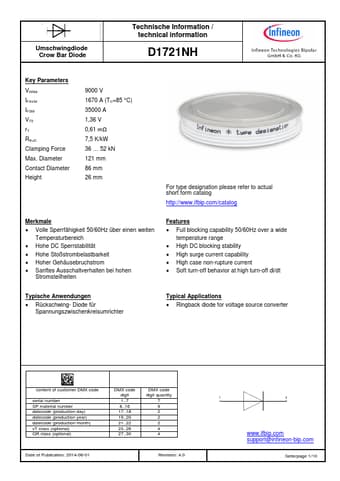

Umschwingdiode Crow Bar Diode Technische Information / technical information D1721NH Key Peanranmdaetteenrs VRRM IFAVM IFSM VT0 rT RthJC Clamping Force Max. Diameter Contact Diameter Height 9000 V 1670 A (TC=85 °C) 33557000A0 A(TC=55°C) 1,36 V 0,61 mΩ 7,5 K/kW 36 … 52 kN 121 mm 86 mm 26 mm For type designation please refer to actual short form catalog http://www.ifbip.com/catalog Merkmale Volle Sperrfähigkeit 50/60Hz über einen weiten Temperaturbereich Hohe DC Sperrstabilität

D1721NH Features

* Full blocking capability 50/60Hz over a wide temperature range

* High DC blocking stability

* High surge current capability

* High case non-rupture current

* Soft turn-off behavior at high turn-off di/dt Typische Anwendungen

* Rückschwing- Diode für Spannungszwischenkreisu
